Hybrid steel and polypropylene impact protection railing system

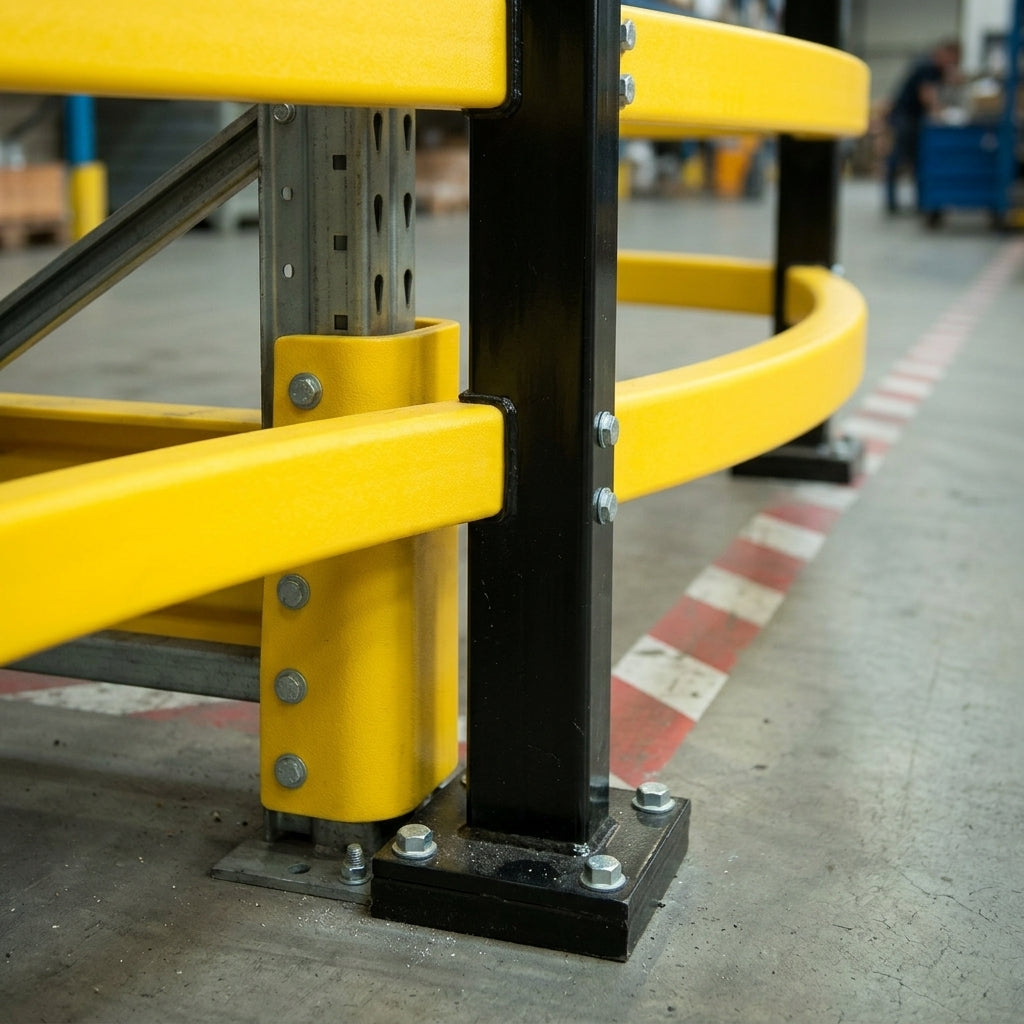

Hybrid steel and polypropylene impact protection railing system (view 2)

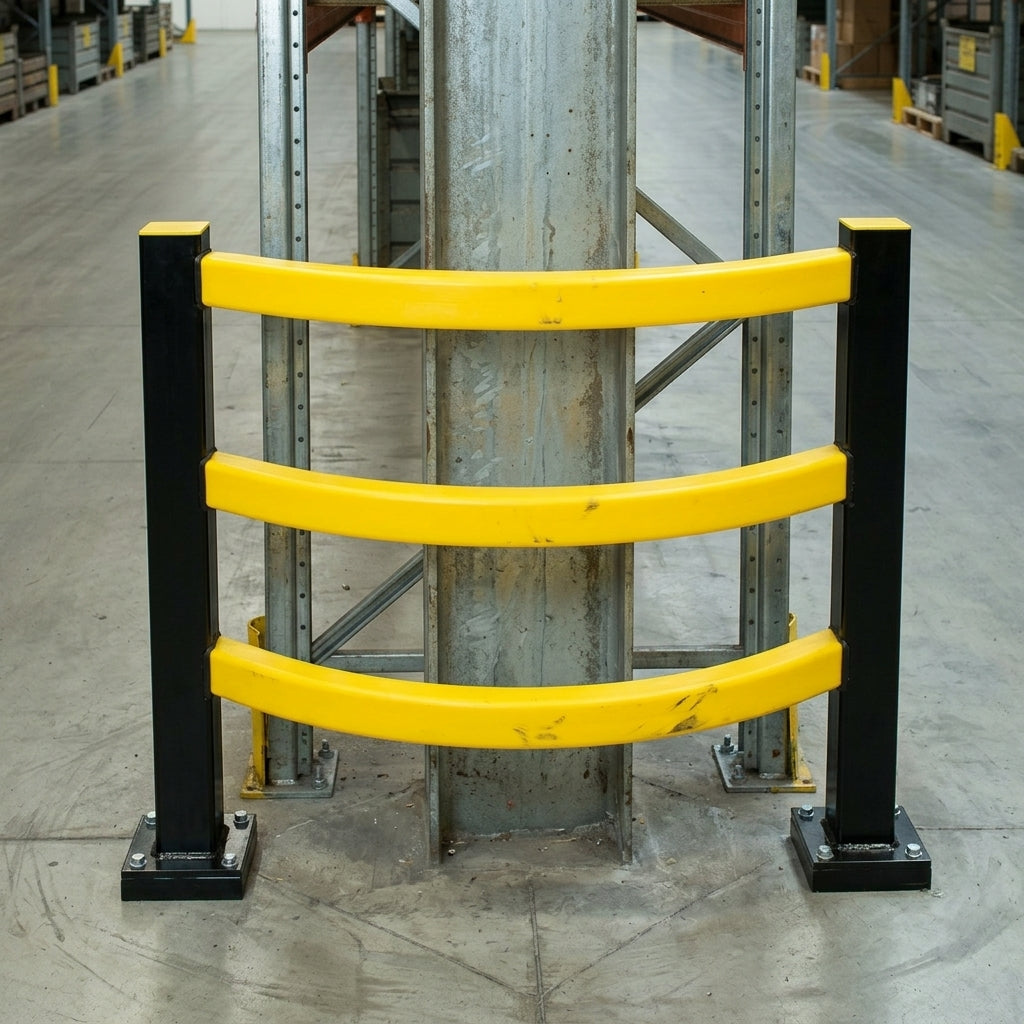

Hybrid steel and polypropylene impact protection railing system

A modular hybrid railing system merging steel posts with flexible polypropylene rails and polyurethane deflection pads for maximum impact absorption.

£415.13 incl. VAT

Selected: End Post - Powder Coated · SKU RCD29839

Fitting a whole forecourt or car park?Send your run lengths for one project price

Overview

This impact protection system combines the structural integrity of steel with the resilience of high-grade polypropylene to safeguard personnel, vehicles and property in busy warehouse and industrial environments. Posts are fitted with patented polyurethane pads enabling deflection up to 10° (approximately 17.5 cm), minimising floor stress and repair costs. The system is suitable for both indoor and outdoor deployment with surface mounting installation.

  • Hybrid construction: resilient steel posts with flexible polypropylene lateral rails
  • Polyurethane pads enable controlled post deflection up to 10° angle
  • High-grade polypropylene rails provide exceptional impact resistance
  • Modular design for customised applications and layouts
  • Quick and easy surface-mounted installation
  • TÜV-tested to DGUV 108-007 safety standard

Where it is used

  1. 01Segregating traffic lanes from pedestrian walkways
  2. 02Forklift lane and pedestrian path separation
  3. 03Protecting work areas and sensitive equipment
  4. 04Vehicle and personnel collision prevention

Specifications

Your selectionEnd Post - Powder Coated
Post optionsend, mid and corner configurations
Rail lengths available1500 mm, 2000 mm, 2300 mm
Finish optionspowder coated or powder coated and galvanised steel
—Suitable for indoor and outdoor use
—Surface mounting only
SKURCD29839

Other versions in this range

TubeFinishFixingPrice
——— £3,608.02: 1000 × 100 mm column protector, steel and polypropylene
70×70mm—— From £166.63: 70×70mm medium duty impact protection railing system
——— From £195.02: Heavy-duty impact protection railing system with modular posts and rails
——— From £1,145.62: Column protection barrier 1,000mm steel posts with polypropylene rails
——— From £602.95: 835 × 475mm railing system gate, steel, powder-coated yellow
——— You are here
——— £1,402.34: 835 × 475 mm self-closing railing gate for hybrid systems
80×40mmGalvanised steel— From £16.68: 80×40mm Hot-Dip Galvanised Steel Box Rail – Warehouse Protection
