70×70mm medium duty impact protection railing system
- Ø70×70mm tube
- 14 options
Modular medium duty railing system for delineating and protecting machinery and pedestrian pathways from vehicular impact.
£238.42 incl. VAT
Overview

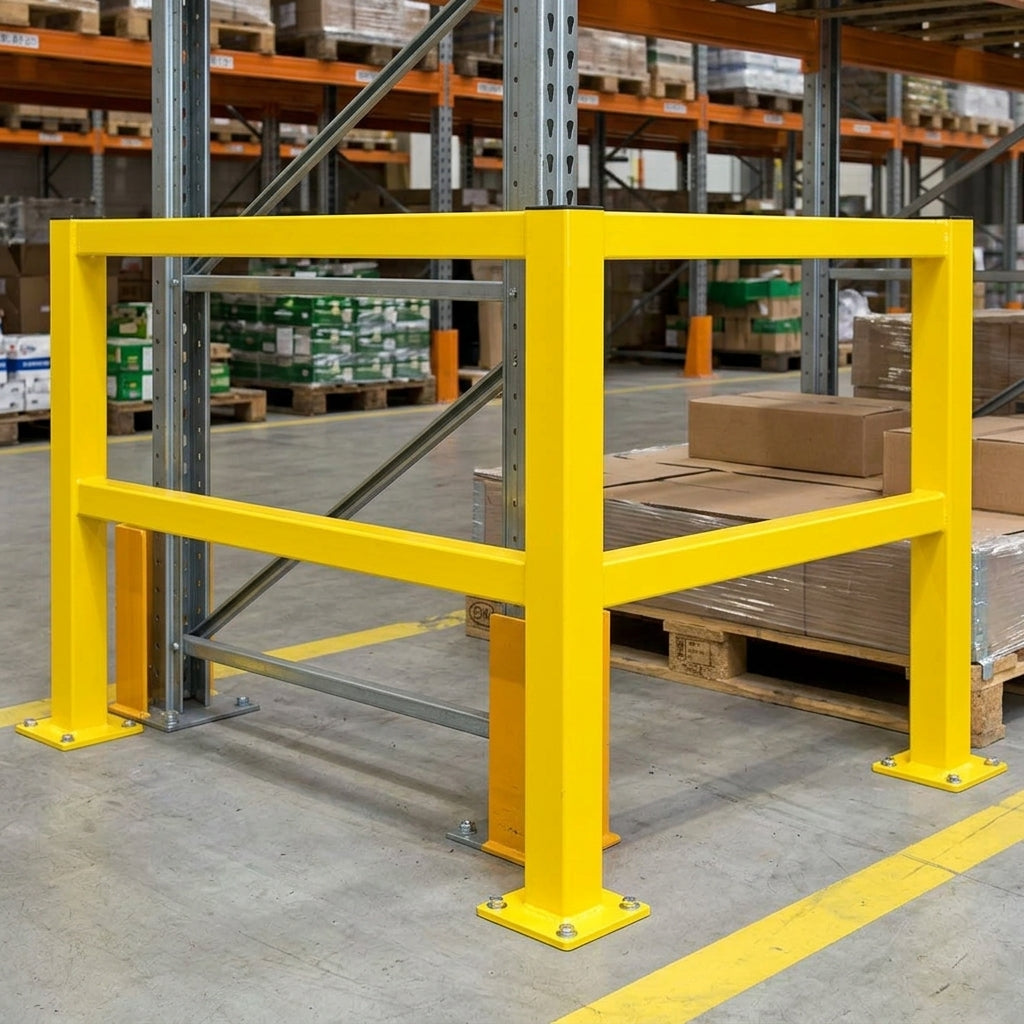

This impact protection railing comprises 70×70mm posts with 1000mm height, lateral rails of 60×40×3mm, and a 160×140mm base plate with pre-drilled fixing holes. Available as powder-coated only (indoor) or hot-dip galvanised and powder-coated (outdoor), the system can be extended at any stage and damaged sections replaced individually.
- Modular design for rapid installation and future extension
- Counter-sunk bolts secure rails to posts for clean appearance
- Easily replaceable damaged sections

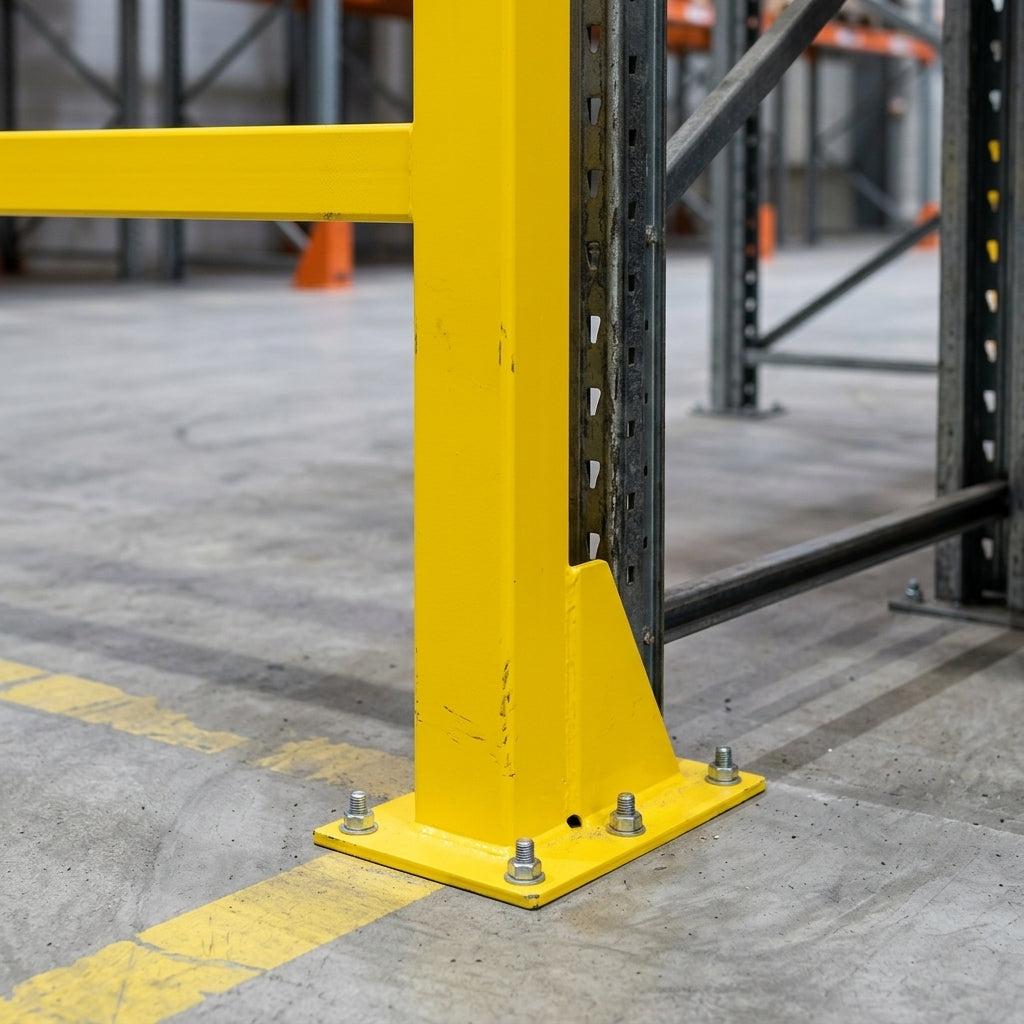

- 160×140×10mm base plate with 4 pre-drilled fixing holes
- Tested according to DGUV 108-007
Where it is used
- 01Manufacturing facilities and production areas
- 02Storage warehouses and distribution centres
- 03Vehicle storage areas and car parks
- 04Machinery and equipment perimeter protection
- 05Pedestrian pathway delineation from vehicular traffic
Specifications
| Your selection | Powder Coated Only / End Post |
|---|---|
| Post dimensions | 70×70mm |
| Height | 1000mm |
| Lateral rail dimensions | 60×40×3mm |
| Rail lengths available | 1000mm, 1200mm, 1500mm, 2000mm |
| Base plate | 160×140×10mm with 4 fixing holes |
| Finish options | powder-coated (indoor) or hot-dip galvanised and powder-coated (outdoor) |
| SKU | RCD29872 |
