Heavy-duty impact protection railing system with modular posts and rails
A TUV-certified modular railing system engineered to separate pedestrian walkways from vehicle and forklift traffic in industrial environments.
£277.70 incl. VAT
Overview

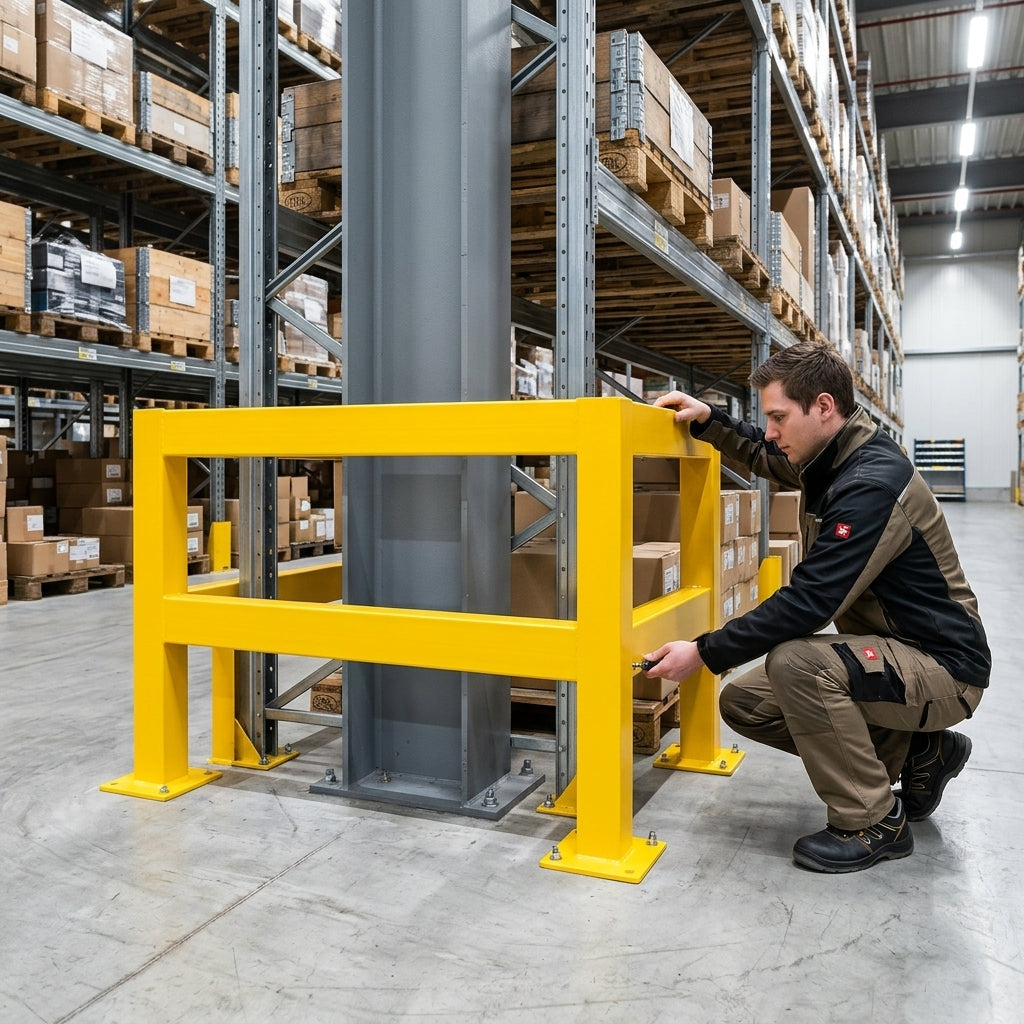

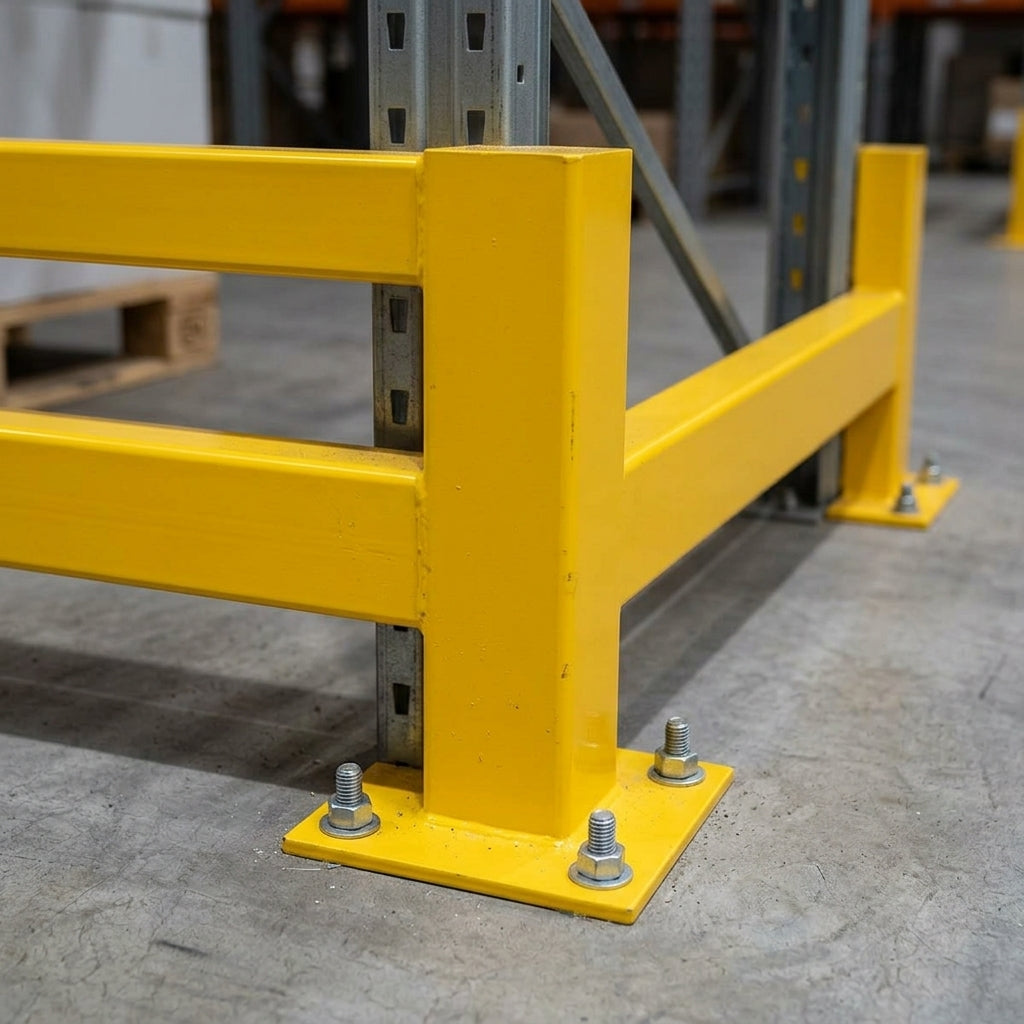

This heavy-duty impact protection system combines square posts with lateral rails to create a robust barrier against vehicular contact. The modular framework enables rapid installation and future expansion, whilst damaged sections can be replaced individually. Components are secured with countersunk bolts and available in powder-coated or galvanised-and-powder-coated finishes.
- Modular design for flexible configuration and swift installation
- TUV-certified to DGUV 108-007 for impact safety
- Optional FLEX mounting with UV-resistant polyurethane pad allows up to 10° deflection for shock absorption
- Countersunk bolt attachment for secure fixing
- Individual component replacement without full system removal
Where it is used
- 01Separation of forklift traffic lanes from pedestrian walkways
- 02Protection of machinery, equipment and work zones in warehouses and industrial facilities
- 03Perimeter guarding in manufacturing and logistics environments
- 04Pedestrian safety barriers in areas with vehicle movement
Specifications
| Your selection | Powder Coated Only / End Post |
|---|---|
| Posts | 100 × 100 mm square, heights 500 mm or 1,000 mm, 200 × 200 × 10 mm base plate with 4 fixing holes |
| Lateral rails | 120 × 80 × 4 mm wall thickness, lengths 1,000/1,200/1,500/2,000 mm |
| Bollards | 1,000 mm height, 100 × 100 mm square, matching base plate specification |
| Finishes | Powder coated yellow or hot-dip galvanised with powder-coated yellow |
| Optional FLEX pad | UV and weather resistant, deflection to 10° |
| SKU | RCD29858 |
