Swing Height Restrictor Barrier 2.05m–2.2m Galvanised Steel
- Galvanised steel
- 10 options

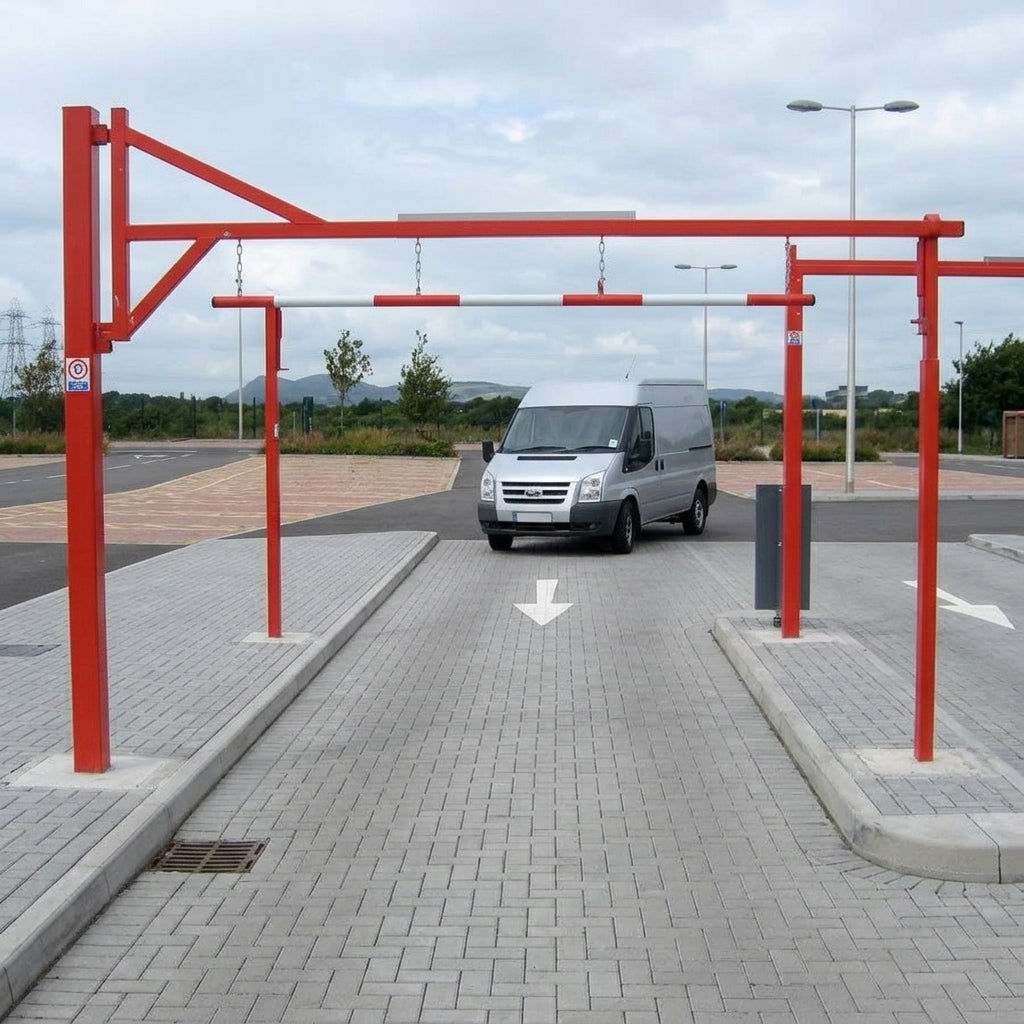

Galvanised steel swing barrier that restricts vehicle access to a standard clearance of 2.05m (with knock bar) or 2.2m (without), ideal for car parks and industrial compounds.
£3,174.24 incl. VAT
Overview

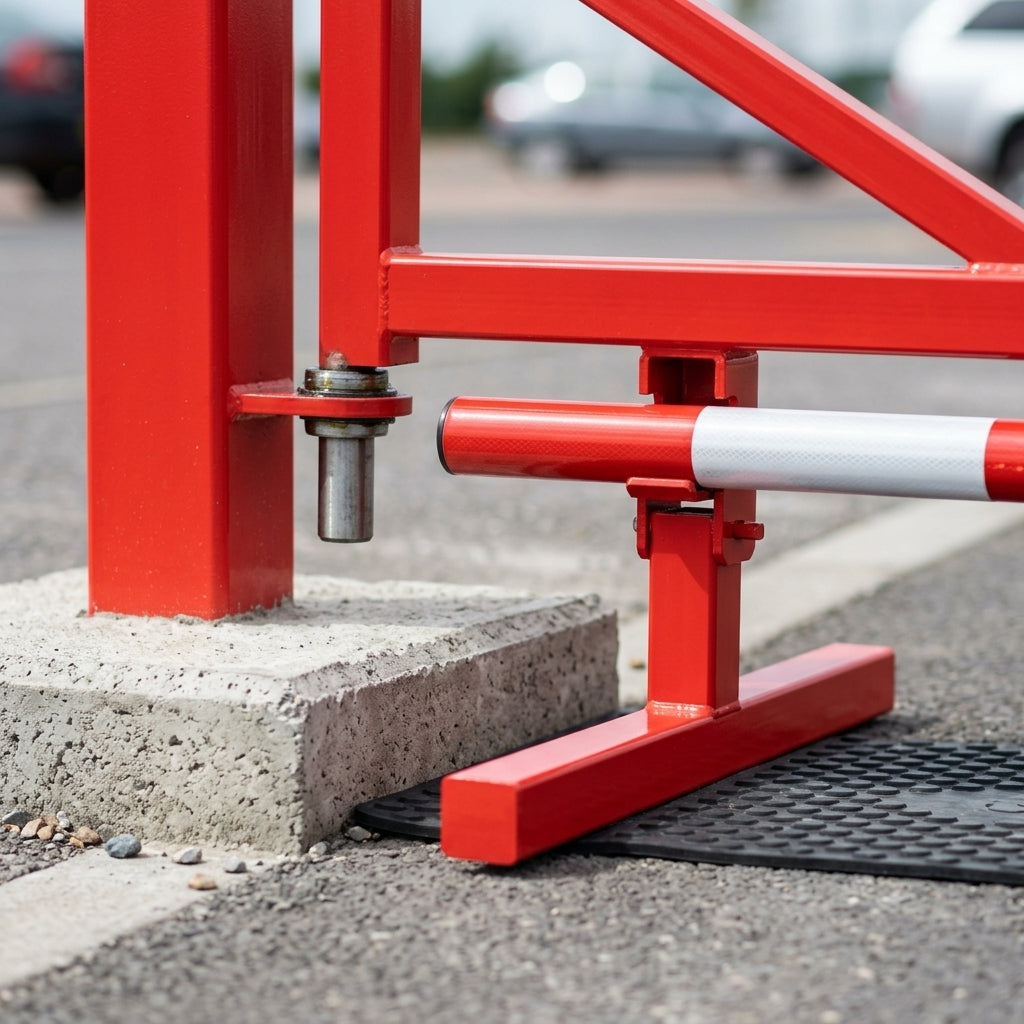

This height restrictor comprises a main body of 90×90mm square tube and a gate arm of 60×60mm square tube, both with 3mm wall thickness. The beam swings open to permit access when needed and can be locked in the open position using a secondary catch post. The body is coated red as standard; other colours are available to BS/RAL specification on request.
- Standard clearance 2.05m with optional knock bar; 2.2m without
- Swing-open design allows full access when required
- Lockable in open position via secondary catch mechanism
- Galvanised mild steel with red powder coat finish (other colours available)
- Available ragged or flanged; knock bar and warning sign optional extras
- Simple installation; concretes 600mm below ground
Where it is used
- 01Surface car parks and retail car parks
- 02Multi-storey car parks
- 03Industrial and commercial compounds
- 04Sites requiring vehicle height restriction
- 05Access control for high-sided vehicles
Specifications
| Your selection | 3m Width / Surface Mounted |
|---|---|
| Main body | 90×90mm square tube, 3mm wall thickness |
| Gate arm | 60×60mm square tube, 3mm wall thickness |
| Ground embedment | 600mm below surface |
| Available widths | 3m, 4m, 5m, 6m, 7m |
| Fixing options | surface mounted or root fixed |
| Material | galvanised mild steel with powder coat |
| SKU | RCD30125 |
