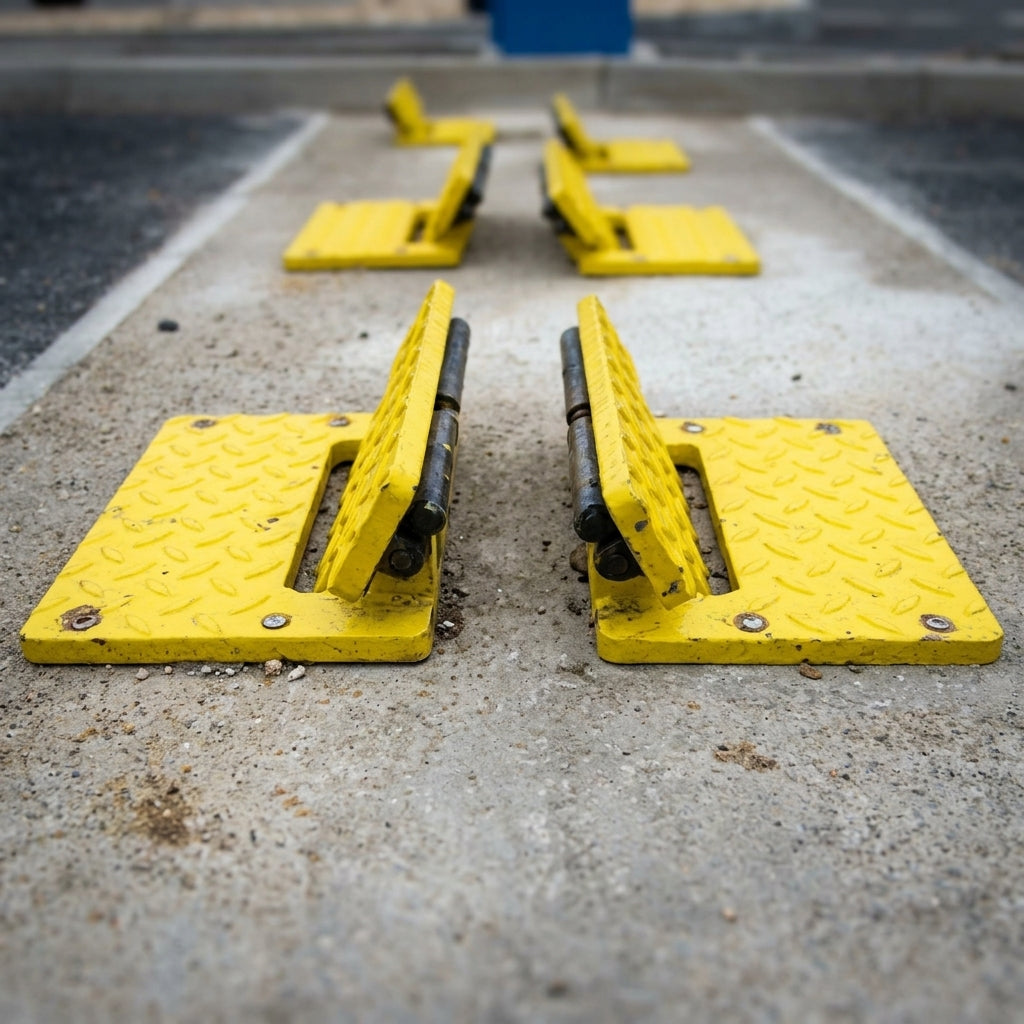

One-way flow plate 200×300mm steel directional traffic control
Galvanised steel directional traffic control plate that permits vehicle passage in one direction only.
£509.59 incl. VAT
Overview
The one-way flow plate uses a hinged flap mechanism with integral rubber buffer that depresses under vehicle weight and returns to vertical when the vehicle passes. Manufactured from heavy-duty galvanised steel with yellow powder-coat finish for high visibility. Designed for use in groups to cover full road widths and is not recommended for HGV use.
- Hinged flap with rubber buffer minimises noise on vehicle passage
- Galvanised steel construction with yellow powder-coat for durability and visibility
- Requires minimum 150mm vehicle clearance
- Can be used with speed ramps to achieve 5mph drive-over speed
- Requires good street illumination for adequate visibility
Where it is used
- 01Car park and private road access control
- 02Emergency vehicle routes requiring one-direction traffic flow
- 03Pedestrian zone protection with controlled vehicle access
- 04Waste collection and service vehicle routing
Specifications
| Your selection | Surface Mounted |
|---|---|
| Dimensions | 200mm width × 300mm length × 290mm height |
| Material | Galvanised steel |
| Finish | Powder-coated yellow |
| Cast-in depth | 200mm below ground level |
| Minimum recommended vehicle clearance | 150mm |
| SKU | RCD30256 |
