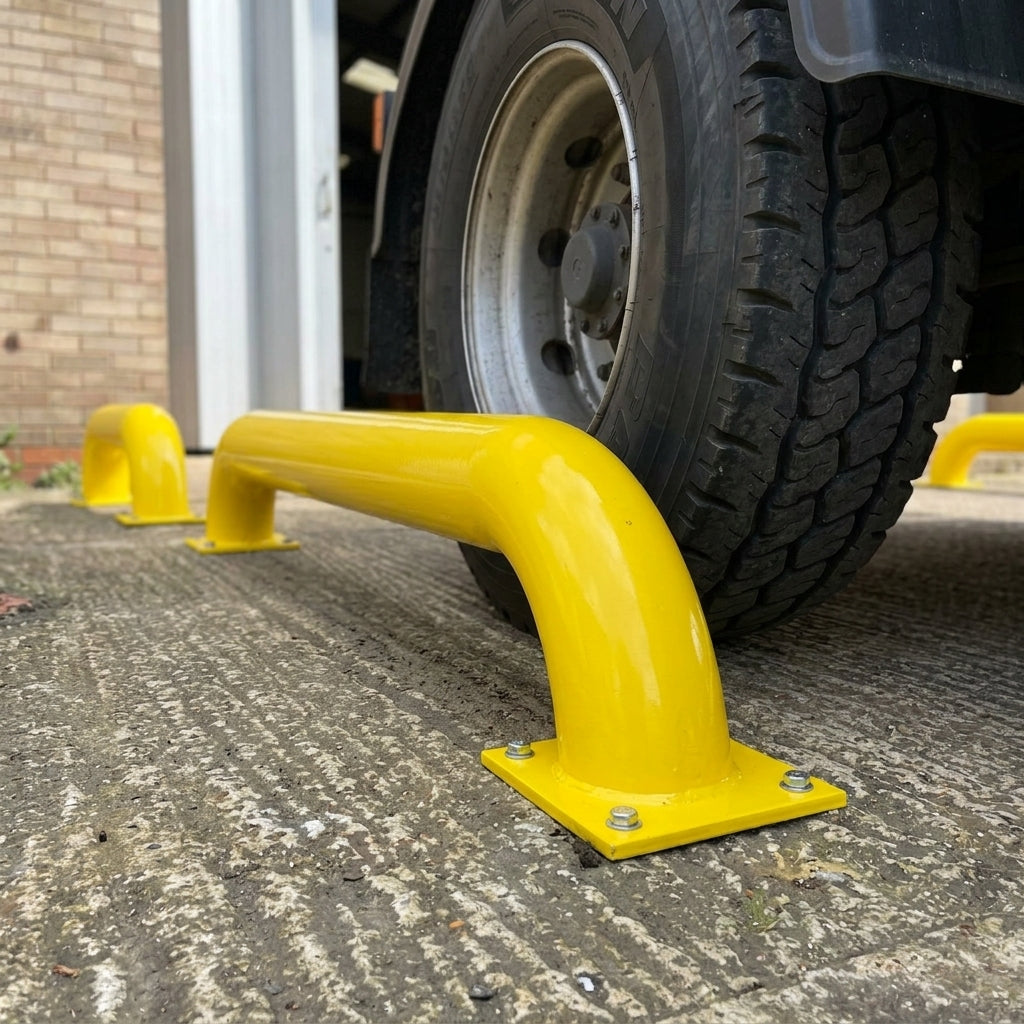

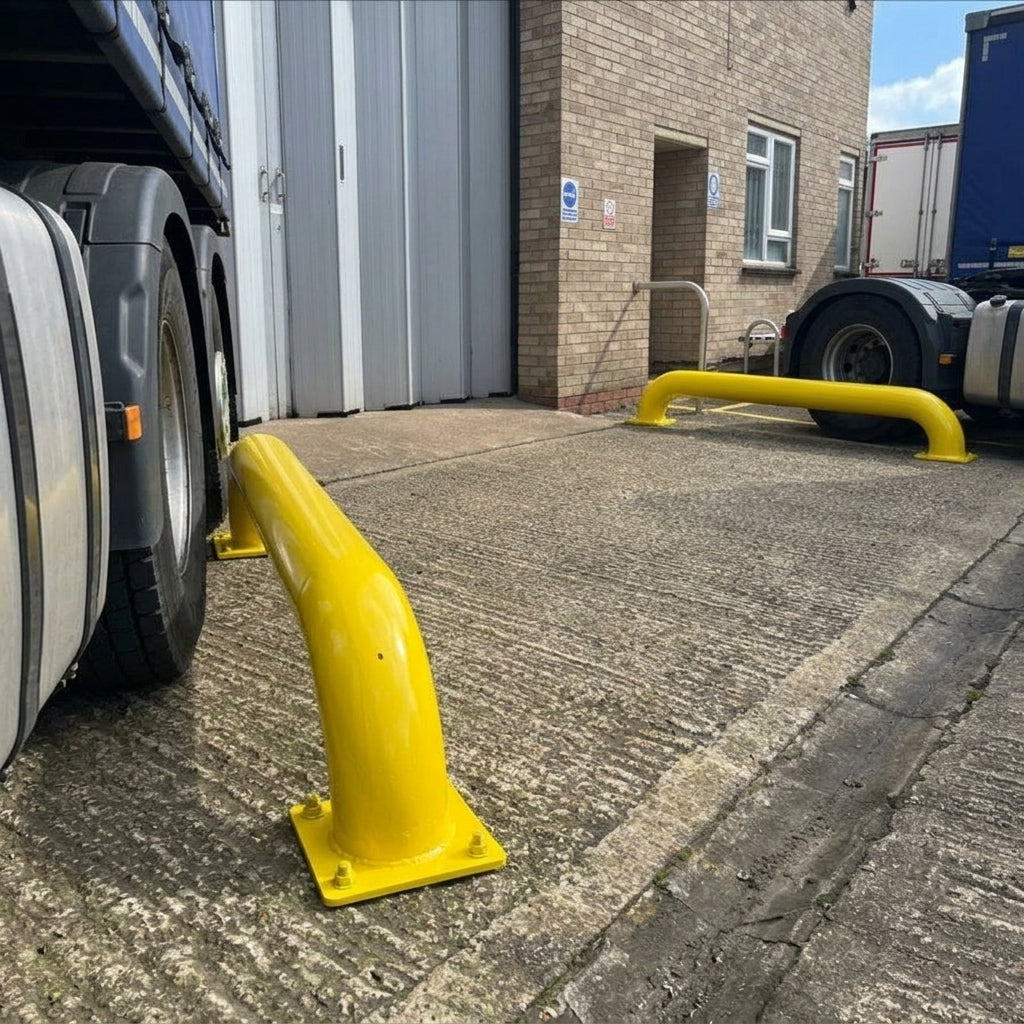

HGV wheel guide 139–168mm galvanised steel 1500–2000mm
- Galvanised steel
- 8 options
Galvanised steel wheel guide for safe HGV reversing and equipment protection in warehouses and loading bays.
£839.28 incl. VAT
Overview
Heavy-duty wheel guides manufactured from mild steel with galvanised finish to prevent corrosion in demanding warehouse and factory environments. Available in four size and length combinations with optional yellow powder-coat finish to enhance driver visibility. Supplied individually with pre-drilled mounting plate for bolt-down installation.
- Galvanised mild steel construction for durability and corrosion resistance
- Four outer diameter options: 76mm, 90mm, 139mm or 168mm
- Two lengths available: 1500mm or 2000mm
- Optional yellow powder-coat finish for improved visibility
- 5mm wall thickness for impact resistance
- Bolt-down installation only via 250mm square × 10mm steel plate
Where it is used
- 01HGV and delivery truck reversing guidance at loading bays
- 02Equipment and racking protection from forklift impact
- 03Low-level perimeter protection in warehouses
- 04Factory and industrial vehicle route guidance
Specifications
| Your selection | 139mm x 1500mm / Galvanised |
|---|---|
| Material | mild steel, galvanised |
| Outer diameter range | 76–168mm |
| Length options | 1500mm or 2000mm |
| Overall height | 320mm |
| Wall thickness | 5mm |
| Mounting plate | 250mm square × 10mm |
| Fasteners | 8 × 18mm bolts per guide |
| Finish | galvanised or galvanised with yellow powder-coat |
| SKU | RCD30048 |
