Cycle Lane Separator Bollard – 800/1000/1030mm MDPE

Passively safe bollard designed to separate cycle lanes from traffic with high visibility and impact resilience.

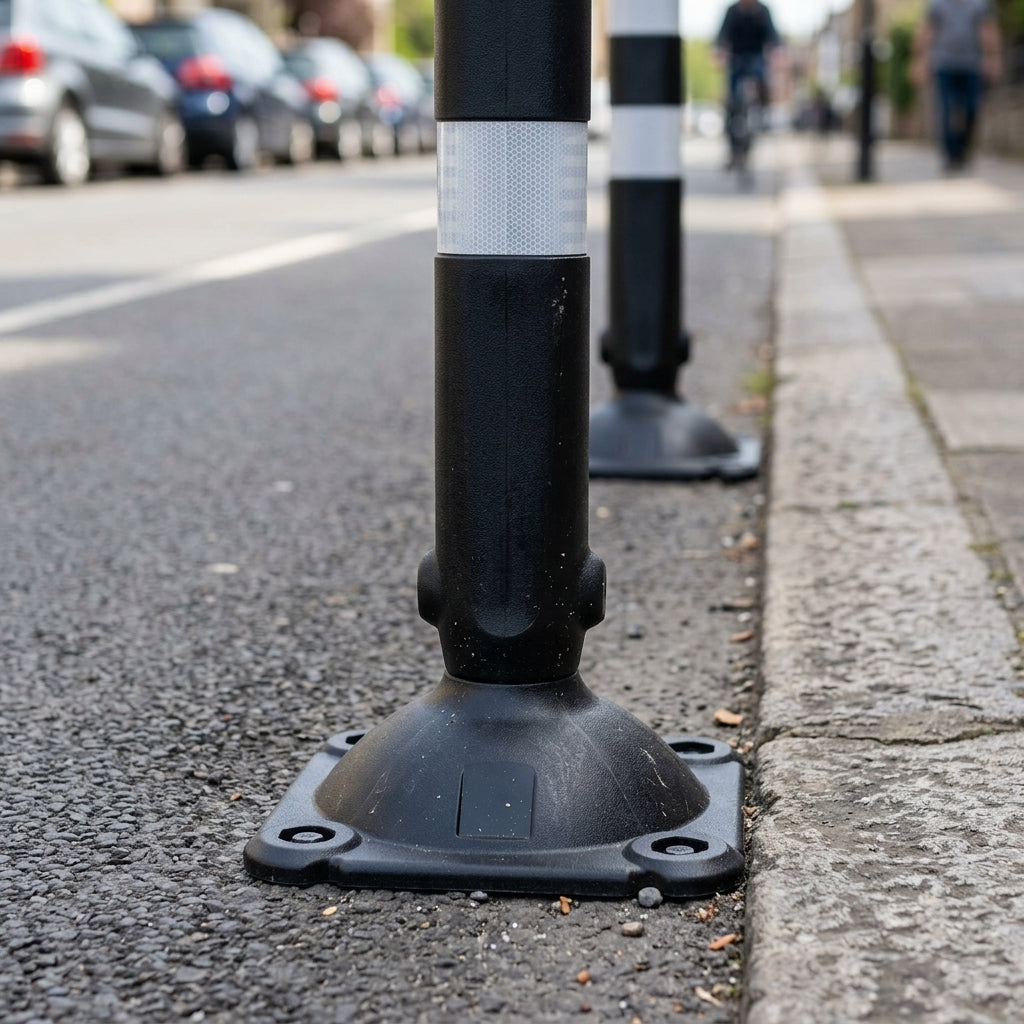

This cycle lane separator uses a flexible, self-righting base combined with rigid MDPE upper post to absorb impacts and return upright without damaging reflective surfaces. The two recessed 100mm RA2 reflective bands provide 360-degree visibility, whilst the maintenance-free design requires no painting or rust protection.

Key Features

• Flexible self-righting base system withstands multiple impacts
• Two recessed RA2 reflective bands for 360-degree visibility
• MDPE upper post (UV stabilised) resists weather and fading
• Recessed reflector design reduces damage from vehicle contact
• Maintenance-free – no rust or repainting required
• Available in three heights: 800mm, 1000mm, 1030mm

Specifications

• Reflective material: Two 100mm RA2 bands (CE marked)
• Materials: Specialty base with UV-stabilised MDPE post
• Base dimensions: 320 × 320mm
• Post dimensions: 110W × 71D mm
• Heights: 800mm, 1000mm, or 1030mm
• Fixing options: Shield Anchor, Asphalt Anchor, or Concrete-in Anchor

Applications

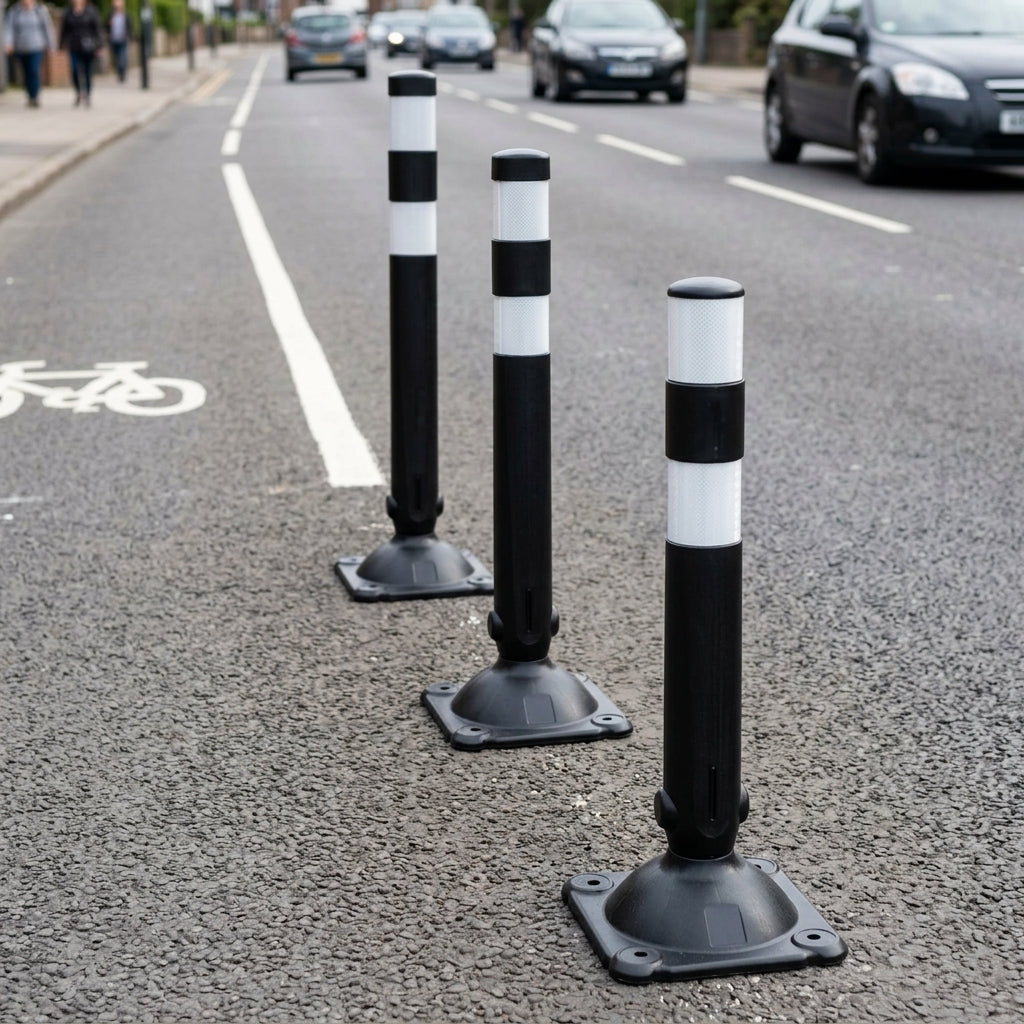

• Segregating cycle lanes from general traffic
• Semi-segregated cycle infrastructure on urban roads
• Emergency exit points where cyclists need quick egress
• High-visibility lane delineation in town centres and residential zones
