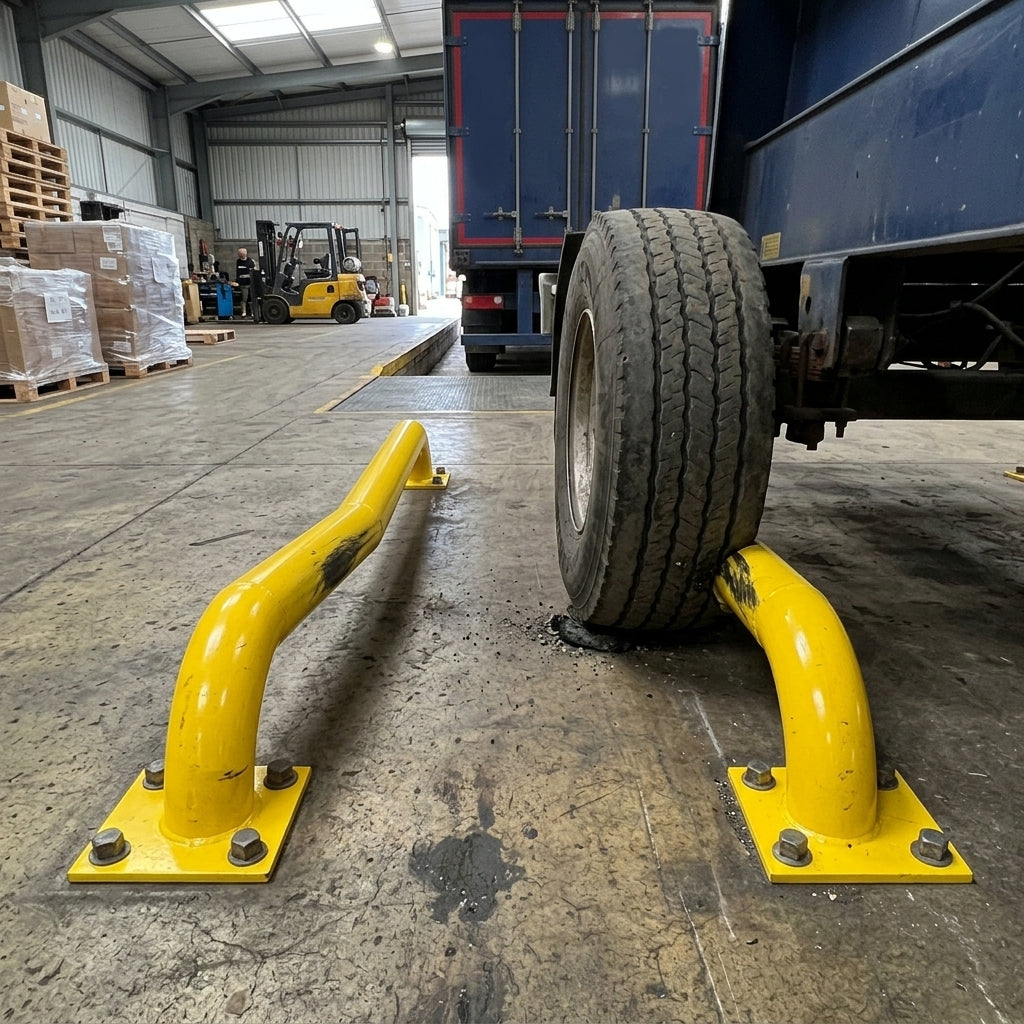

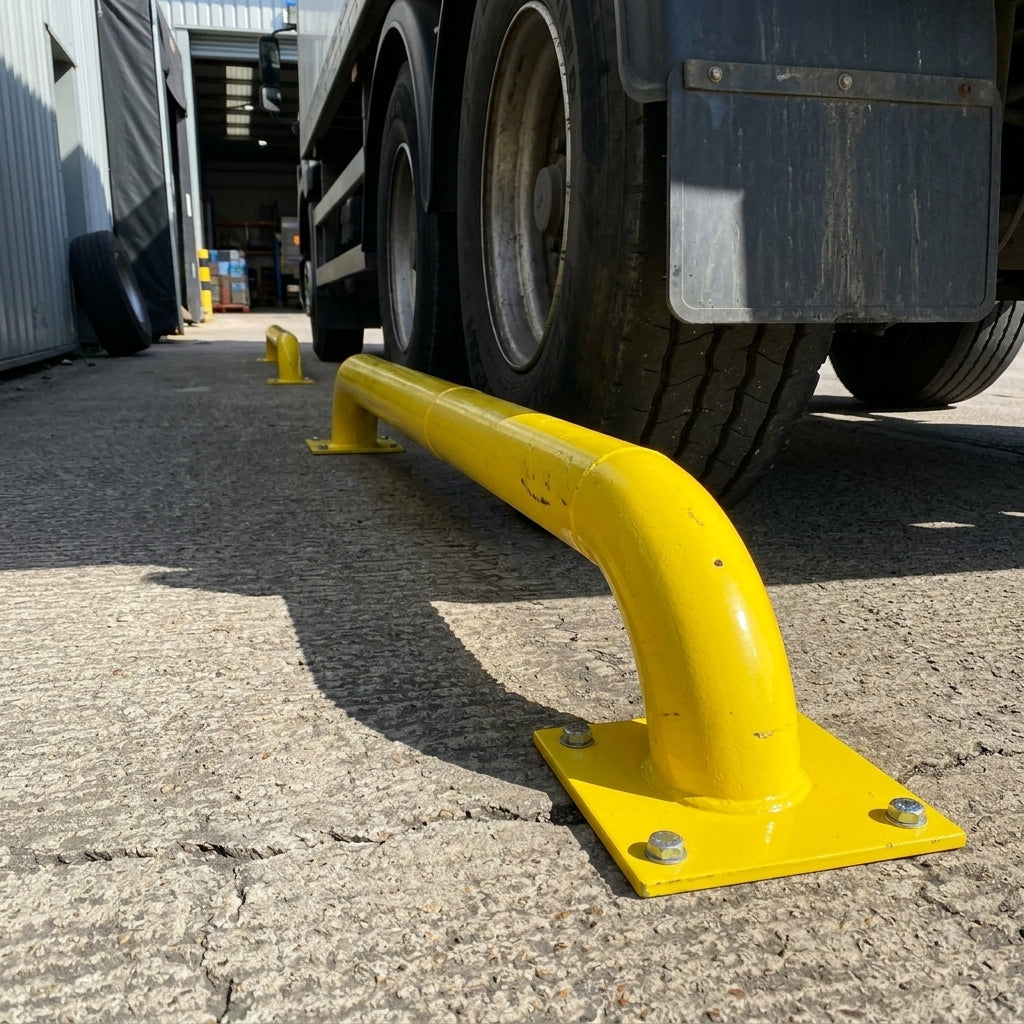

Cranked HGV Wheel Guide 1800mm – Galvanised Steel Pair
- Galvanised steel
- 4 options
Heavy-duty cranked wheel guides for safe HGV reversing and equipment protection in loading bays and warehouses.
£2,171.52 incl. VAT
Overview
These galvanised mild steel guides provide a solid kerb edge to prevent collision damage during reversing manoeuvres and forklift operations. Available in 139mm or 168mm diameter with 1800mm length, supplied as left and right hand pairs with optional yellow powder coat for enhanced visibility.
- Cranked design with 15° angle for optimal vehicle guidance
- Galvanised or galvanised with yellow powder coat finish
- Bolt-down mounting with 250mm square base plate
- 5mm wall thickness for durability
- Supplied as matching pair (one left, one right hand crank)
- Two diameter options: 139mm or 168mm
Where it is used
- 01HGV and delivery truck reversing bays
- 02Warehouse and factory floor edge protection
- 03Racking and equipment protection from forklift damage
- 04Vehicle movement control in industrial loading areas
Specifications
| Your selection | 139X1800 / Galvanised |
|---|---|
| Length | 1800mm |
| Diameter | 139mm or 168mm |
| Base plate | 250mm square × 10mm thick |
| Overall height | 320mm |
| Wall thickness | 5mm |
| Crank angle | 15° |
| Fastening | 8 × 18mm bolts per guide (bolts not included) |
| Material | Mild steel, galvanised |
| SKU | RCD30252 |
Other versions in this range
| Tube | Finish | Fixing | Price |
|---|---|---|---|
| — | Galvanised steel | — | You are here |
| — | — | — | From £387.98: Heavy-duty loading bay protection buffers – 90–120mm – 1000mm |
| — | Galvanised steel | — | From £839.28: HGV wheel guide 139–168mm galvanised steel 1500–2000mm |
| — | — | — | From £71.54: Collision Protection Bars – 400–1200mm lengths, corner options |
| 76mm | Galvanised steel | — | From £136.87: 76mm Low Level Protection Rail – Galvanised Steel, 500/1000/2000mm |
| — | — | — | £710.40: 9m Double D Industrial Rubber Wall Bumper Rail |
