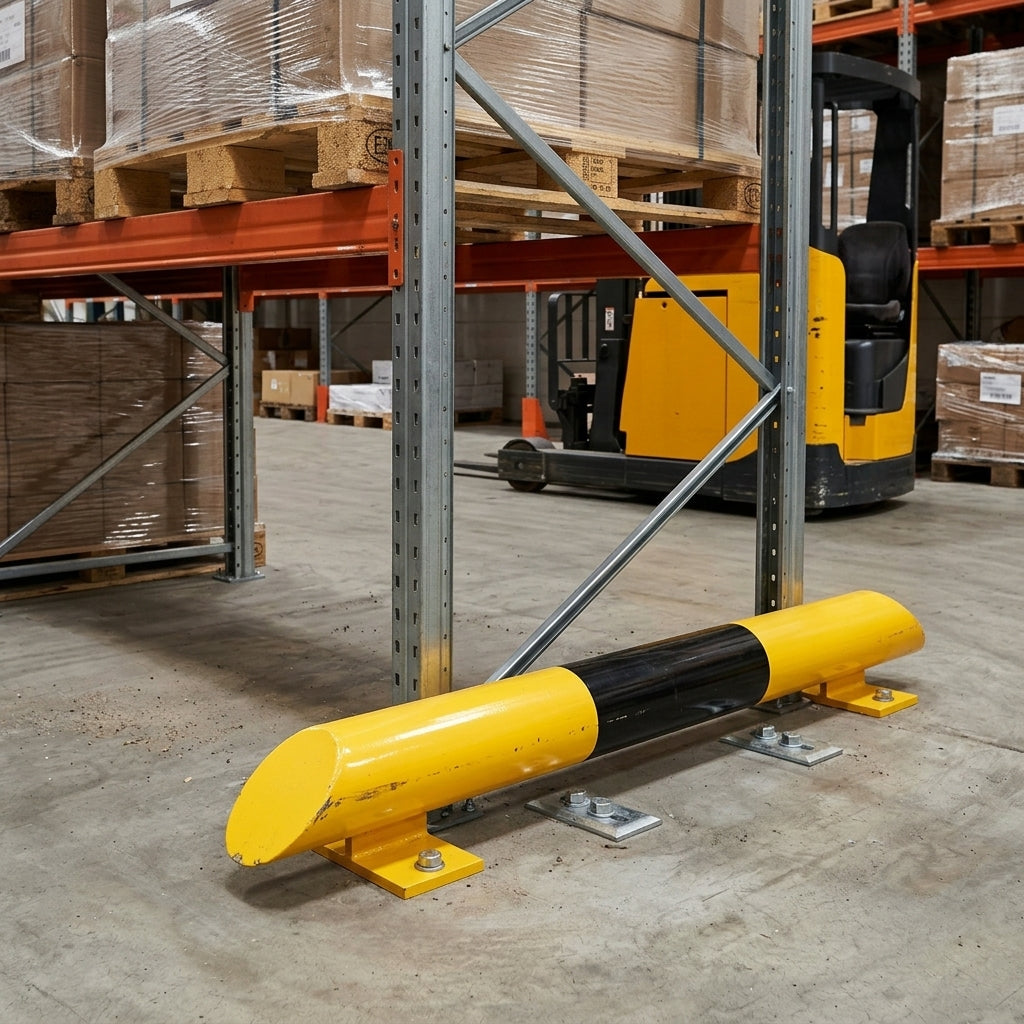

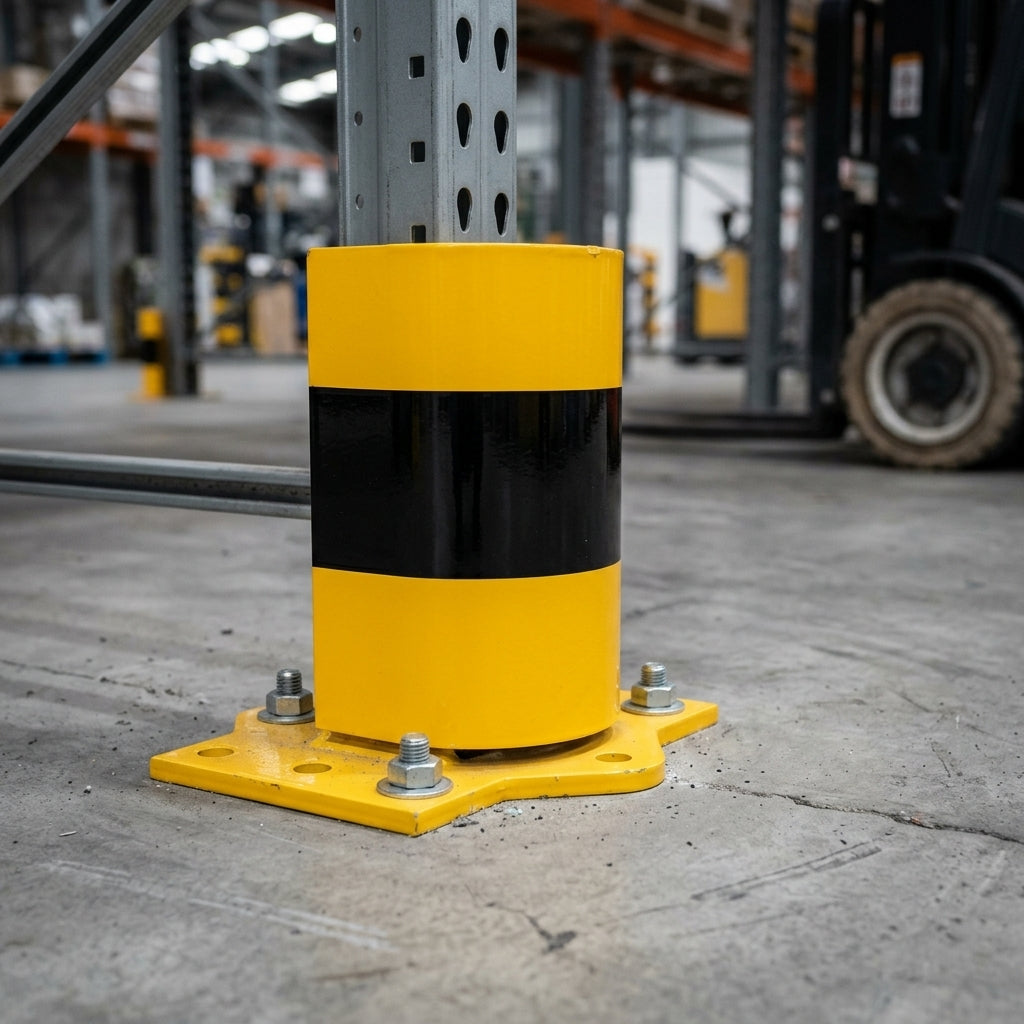

Collision Protection Bars – 400–1200mm lengths, corner options
Economical tubular collision barriers for protecting machinery, shelving and wall-mounted equipment against impact from mobile handling equipment.
£71.54 incl. VAT
Overview
These protection bars feature a low-profile design that allows easy pedestrian access while defending vulnerable plant and infrastructure. Quick installation using fixing bolts to secure base plates, suitable for interior applications. Available in straight sections of 400mm, 800mm and 1,200mm, plus corner variants measuring 638 × 638mm.
- 76mm diameter tubing with 3mm wall thickness
- 86mm overall height for low-profile installation
- 10mm thick pre-drilled base plates with 2 fixing holes per straight section
- Powder-coated yellow with black bands for visibility
- Fast installation with 4 bolts (straight bars) or 6 bolts (corner sections)
- Interior use; corner sections available to order with 10–15 day lead time
Where it is used
- 01Protect industrial shelving units from trolley and pallet truck collisions
- 02Safeguard wall-mounted cabinets, control panels and electrical switchgear
- 03Shield first aid stations, instrument racks and process equipment
- 04Warehouse and factory interior perimeter or machinery zone barriers
Specifications
| Your selection | 400mm |
|---|---|
| Lengths | 400mm, 800mm, 1,200mm, or corner 638 × 638mm |
| Height | 86mm |
| Diameter | 76mm with 3mm wall thickness |
| Base plates | 10mm thick, pre-drilled with 2 fixing holes |
| Finish | Powder-coated yellow with black bands |
| SKU | RCD29828 |
