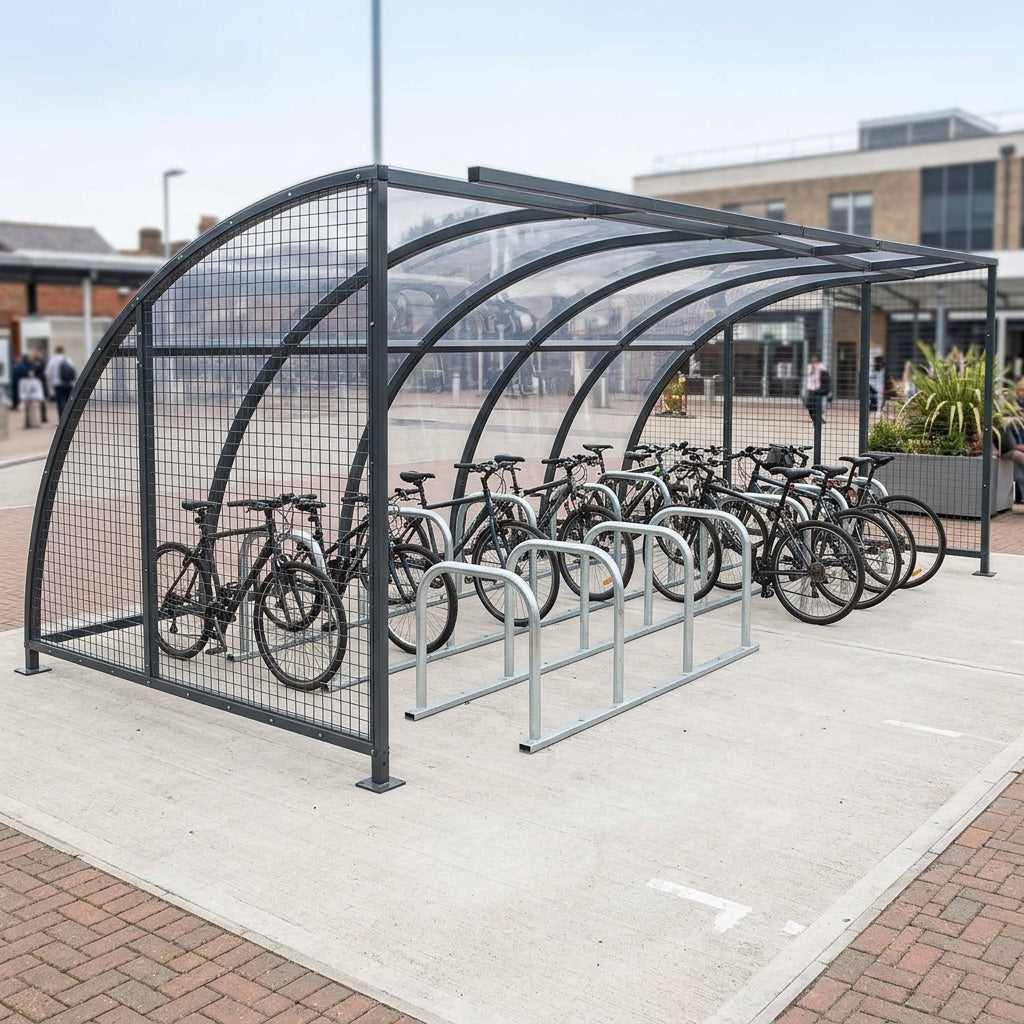

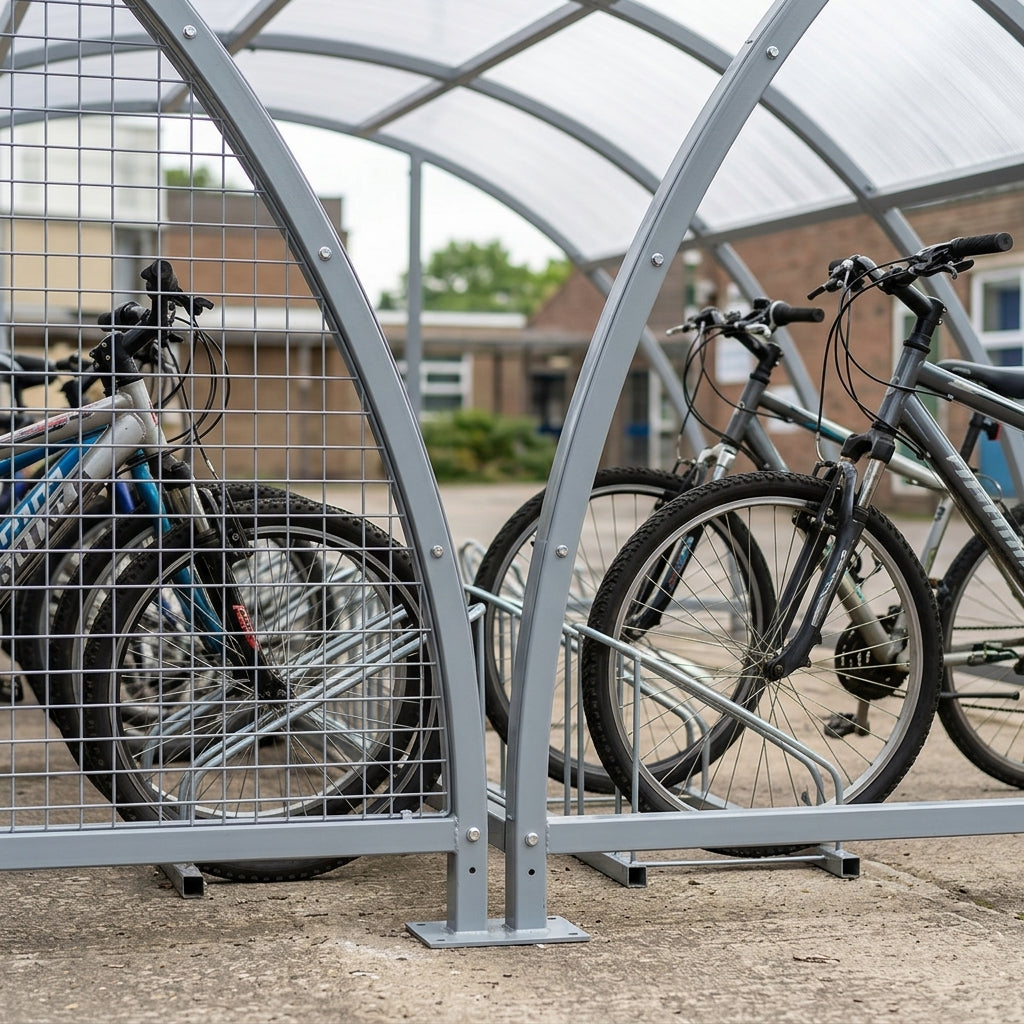

5.5m wide cycle compound shelter with mesh door & stands

Secure, modular bike compound shelter with lockable mesh door and capacity for up to 24 cycles.

£11,557.63 incl. VAT

Fitting a whole forecourt or car park?Send your run lengths for one project price

Overview

A self-contained galvanised mild steel cycle enclosure featuring a curved roof and end panels in 4mm clear PETG sheet. The shelter measures 5.5m in width and is available in lengths of 2m, 3m, 4m or 5m, with the option to add extension bays for longer installations. The mesh door secures with a padlock (not supplied) and the structure bolts to ground-mounted square flange plates (140mm × 140mm × 10mm, 4 bolts per plate).

Galvanised mild steel construction with curved roof profile
Clear 4mm PETG sheet panels for visibility and weather protection
Lockable mesh door with padlock securing point
5.5m fixed width; modular lengths from 2m to 5m with extension options
2128mm front height; delivered as flat-pack for on-site assembly
Cycle stands included for secure parking

Where it is used

01Workplace cycle parking and secure bike storage
02Educational institutions and campus facilities
03Public transport interchange stations
04Residential and multi-unit developments
05Municipal cycle hubs and community spaces

Specifications

Your selection	5.5m Wide x 2m Deep - 8-10 Cycles
Overall width	5525mm
Available lengths	2m, 3m, 4m, 5m plus extensions
Front height	2128mm
Frame	galvanised mild steel with square flange plates
Roof and panels	4mm clear PETG sheet
Mounting	bolted installation; anchor bolts not included
SKU	RCD29617
