4m wide free-standing smoking shelter, galvanised steel, 1–5m lengths

Galvanised steel
5 options

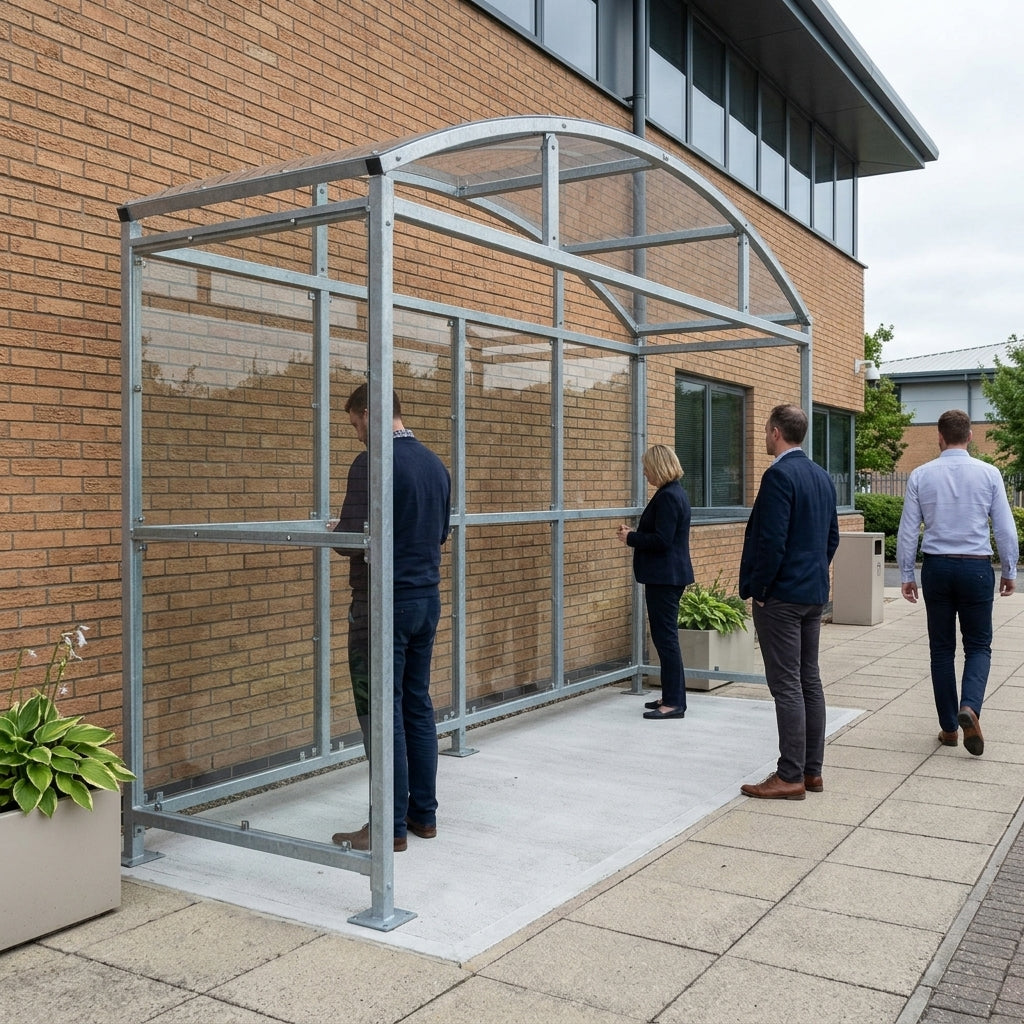

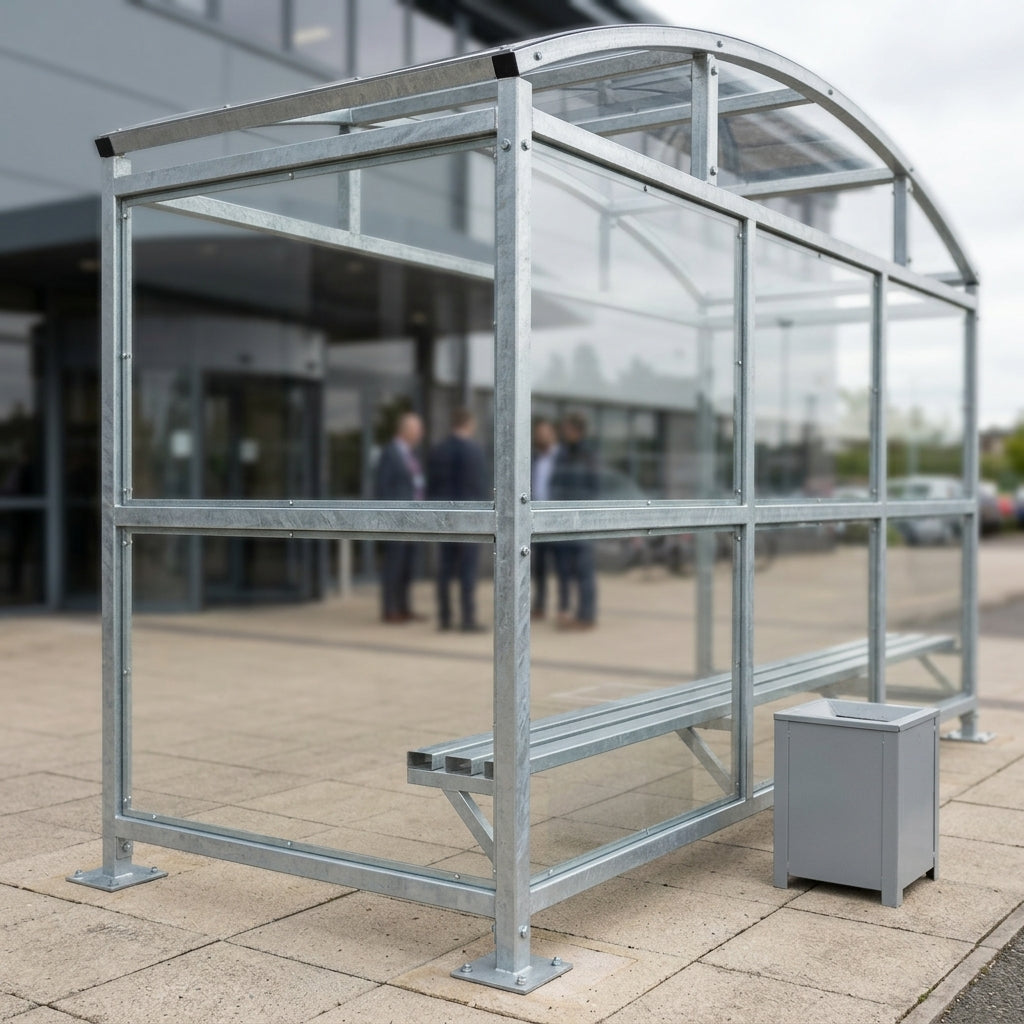

Open-fronted free-standing smoking shelter in galvanised mild steel with curved PETG roof and side panels.

£4,770.43 incl. VAT

Fitting a whole forecourt or car park?Send your run lengths for one project price

Overview

Designed for on-site assembly with bolt-down fixings. The shelter features a 4mm clear PETG sheet roof and ½ side panels, with a side-to-side curved profile. Available in 4m width with lengths from 1m to 5m; additional extension bays can be added to achieve longer configurations.

Galvanised mild steel construction for durability and corrosion resistance
4mm PETG clear sheet roof panels
½ height side panels
Side-to-side curved roof design
Bolt-down fixing method
Modular length options (1–5m) with extension capability

Where it is used

01Workplace smoking areas
02Hospitality venues and outdoor seating areas
03Transit facilities and transportation hubs
04Commercial and industrial sites
05Extension for existing outdoor shelters

Specifications

Your selection	1m
Width	4m
Length	1m, 2m, 3m, 4m or 5m
Frame material	galvanised mild steel
Roof material	4mm PETG clear sheet
Side panels	½ height
Assembly	on-site, bolt-down fixings
SKU	RCD27466

Other versions in this range

Tube	Finish	Fixing	Price
—	Aluminium	—	£8,880.00: Free Standing Smoking Shelter with Seating \| Aluminium \| Silver
—	—	—	From £1,398.00: Freestanding smoking shelter slimline polycarbonate panels
—	—	—	From £2,213.50: Smoking Shelter 2050–3500mm with Clear Panels – 6–10 Person
—	—	—	From £4,290.02: Flat Roof Smoking Shelter – 3.0m, 6.0m or 9.0m lengths
—	—	—	From £4,606.82: Curved roof smoking shelter 3.0m–9.0m modular outdoor
—	—	—	From £1,799.88: Smoking Shelter Eco – modular outdoor workplace design
—	Galvanised steel	—	From £3,290.18: 2m Wide Galvanised Steel Smoking Shelter – 1–5m Lengths
—	Galvanised steel	—	From £3,626.30: Free-Standing Smoking Shelter – Galvanised Steel, 2m Wide, 1–5m Lengths
—	Galvanised steel	—	£2,637.60: 2m wide galvanised steel open-front smoking shelter with clear panels
—	—	—	From £2,098.82: 2m x 2m smoking shelter with bench and bin
—	Galvanised steel	—	From £3,154.82: 4m x 2m Galvanised Steel Smoking & Bike Shelter
—	—	—	From £4,210.82: Smoking Shelter 4m, 6m or 8m \| Curved Roof UK Compliant
—	—	—	From £7,326.02: Multi-use smoking shelter, 1950mm roof depth, 3–9m lengths
—	—	—	From £11,866.82: 1560mm deep smoking shelter, 2.5m–7.5m lengths, steel frame
—	—	—	£25,740.00: 9m x 4m high-capacity smoking shelter, steel frame polycarbonate
—	Galvanised steel	—	From £4,233.91: 3m wide smoking shelter, galvanised steel, 1–5m lengths
—	Galvanised steel	—	You are here
—	Galvanised steel	—	From £6,974.66: 4m Wide Free-Standing Smoking Shelter, Galvanised Steel, 1–5m Length
—	Galvanised steel	—	From £5,355.43: 3m Wide Free-Standing Smoking Shelter, Galvanised Steel, 1–5m Length
—	Aluminium	—	From £5,982.43: 2m wide open smoking shelter, 1–6m lengths, aluminium

One price for the whole run

Fitting several runs, mixed heights or a full forecourt? Send the details and we'll come back with a single project price.
