3m Wide Shopping Trolley Shelter – Galvanised Steel, 1–5m Lengths
- Galvanised steel
- 5 options

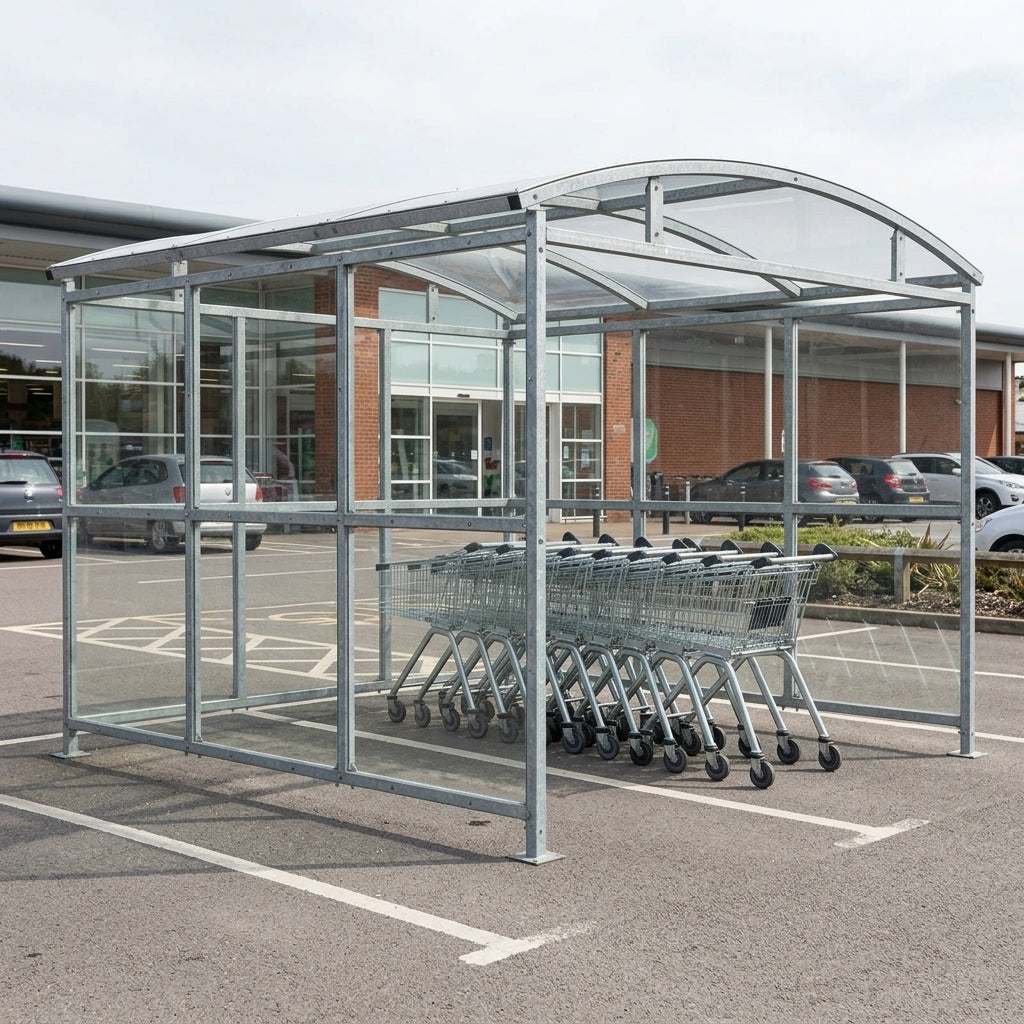

Free-standing galvanised steel shopping trolley shelter with clear PETG roof panel and modular design for supermarket car parks.
£4,915.87 incl. VAT
Overview

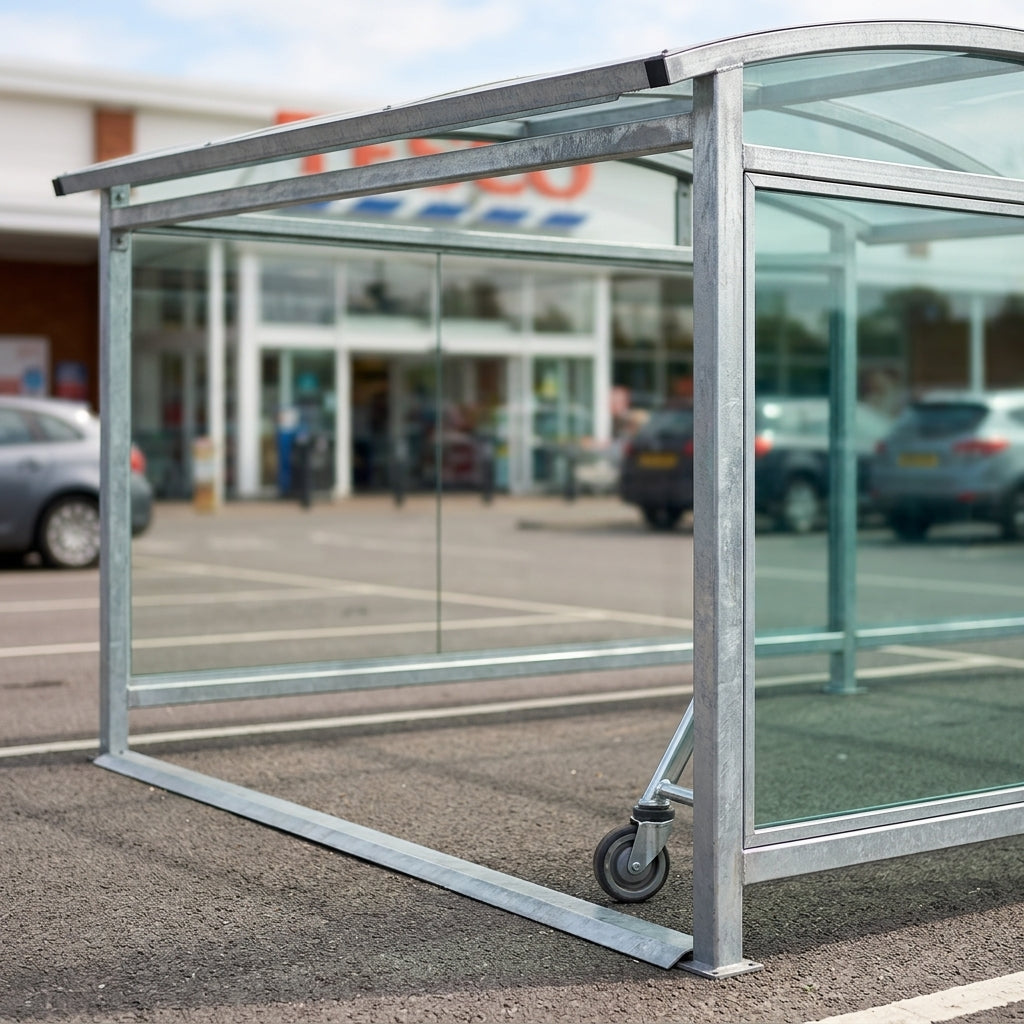

The shelter provides weather protection and organised storage for shopping trolleys on-site. Its open-fronted design with curved PETG roof and side panels maintains visibility whilst keeping trolleys dry. Modular construction allows units to be extended lengthways or positioned end-to-end for larger coverage areas, and bolt-down footplates ensure secure installation.
- Galvanised mild steel construction for rust and weather resistance
- 4mm PETG clear roof sheet with curved profile
- Open front design with integral side panels
- Modular, bolt-down assembly – no welding required
- Adjustable footplates with chemical resin bolt fixings
- Extendable: choose 1m, 2m, 3m, 4m or 5m depth
Where it is used
- 01Supermarket and retail car park trolley storage
- 02Covered trolley parks for customer convenience
- 03Extended units for large-scale trolley management
- 04End-to-end or side-by-side configurations for covered walkways
Specifications
| Your selection | Shelter 3m Wide x 1m Deep |
|---|---|
| Width | 3147mm overall |
| Length options | 1m, 2m, 3m, 4m, 5m (further extensions possible) |
| Internal clearance height | 2090mm; overall height: 2513mm |
| Roof material | 4mm PETG clear sheet |
| Frame | galvanised mild steel |
| Base | square flange plates 140mm × 140mm × 10mm, 4 bolts per plate |
| Installation | bolt-down with chemical resin anchors |
| SKU | RCD30081 |
Other versions in this range
| Tube | Finish | Fixing | Price |
|---|---|---|---|
| — | — | — | £213.60: 2000mm Trolley Shelter Anti Roll Back Strip |
| — | — | — | From £5,517.60: 4013mm x 1500mm Eco Shopping Trolley Shelter |
| — | — | — | From £5,517.60: 4013mm x 2200mm Shopping Trolley Shelter |
| — | Galvanised steel | — | You are here |
| — | Galvanised steel | — | £6,237.60: 3970 × 2077mm Galvanised Shopping Trolley Shelter |
| — | Galvanised steel | — | £4,392.29: 1m Wide Galvanised Steel Shopping Trolley Shelter with Clear Roof |
