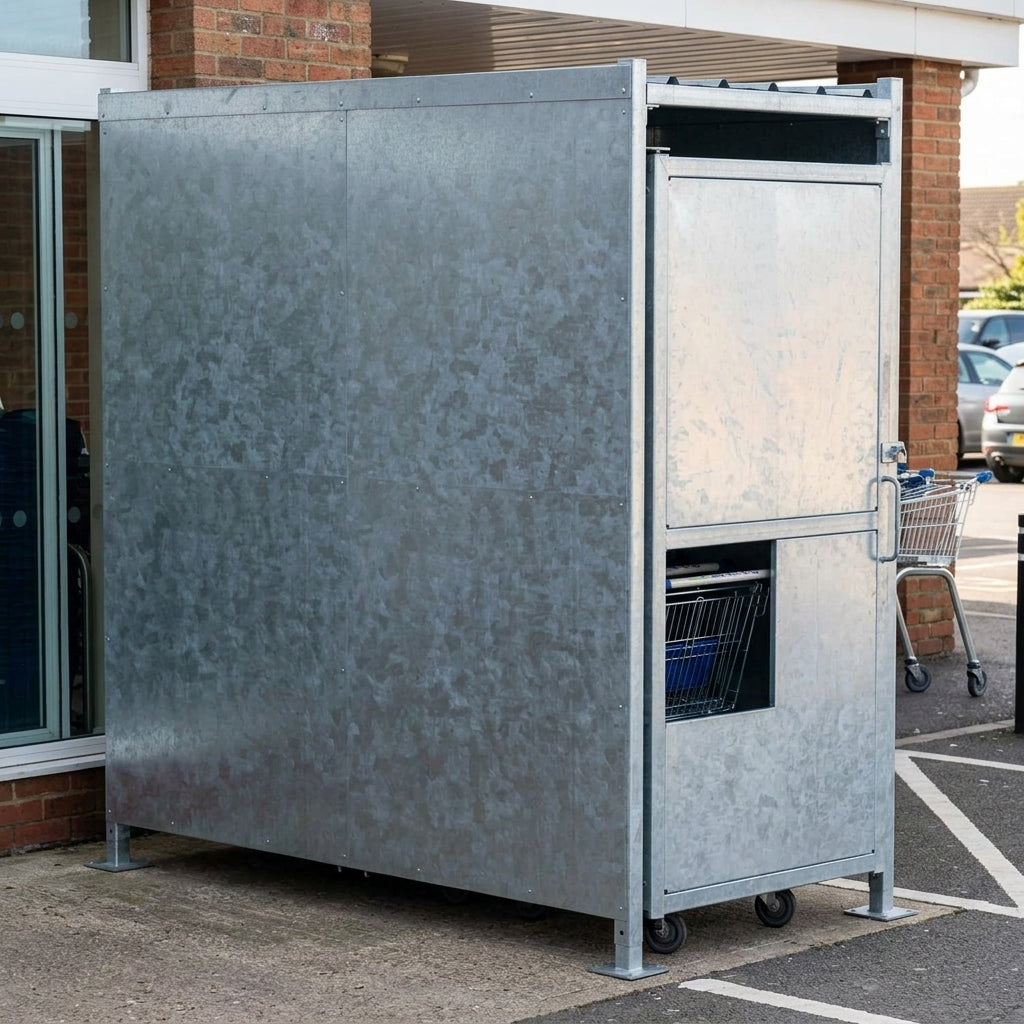

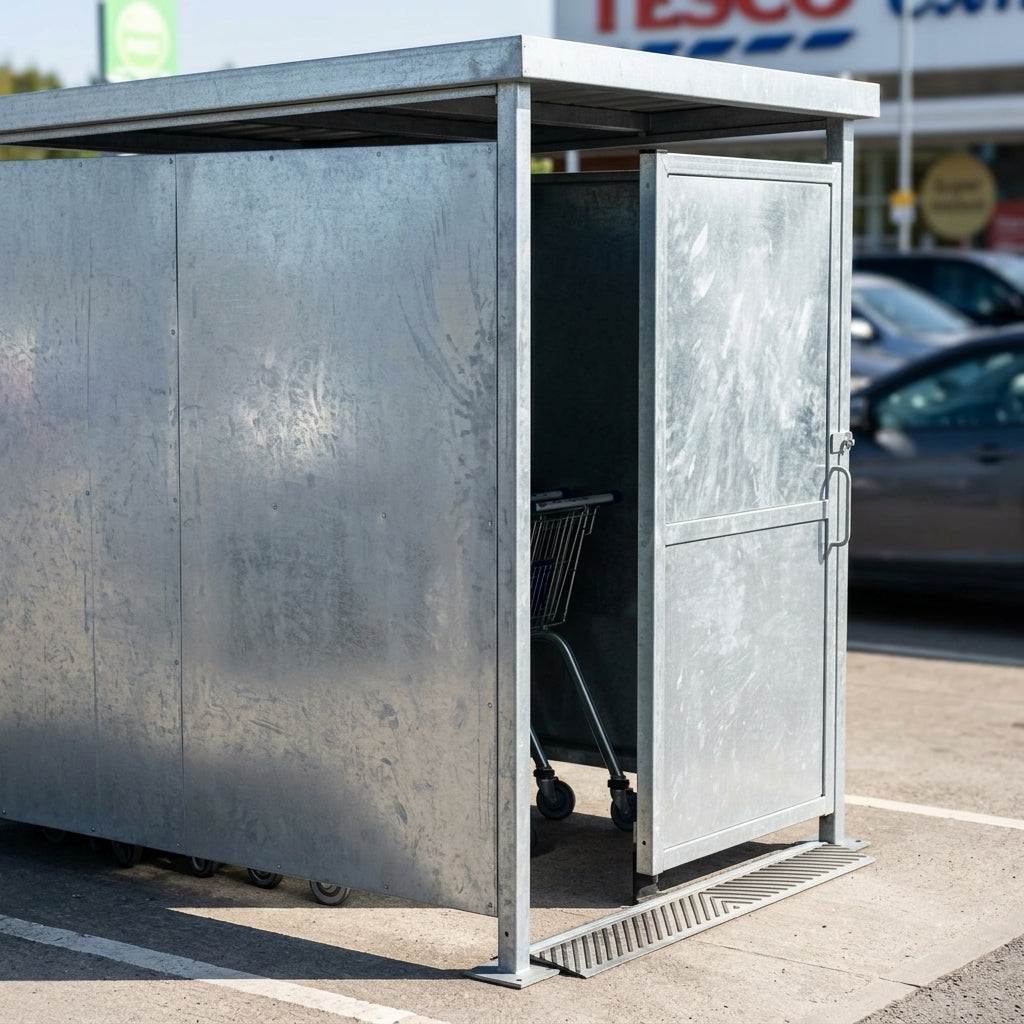

2m × 1–5m galvanised steel bin store with lockable doors

Modular galvanised steel bin storage shelter with lockable clad doors, designed for on-site assembly and bolt-down installation.

A robust free-standing shelter constructed from mild steel with 1mm galvanised panels and roof sheeting. The unit protects bins from weather and unauthorised access with padlock-compatible doors. Available in five length options from 1m to 5m, all with a consistent 2m width and 2190mm internal clearance, allowing extension bays to be added for larger waste storage requirements.

Key Features

• Galvanised mild steel frame (50mm square section to EN10219:2006) with 1mm galvanised steel side panels and roof
• Lockable galvanised clad doors secured by padlock (not included)
• Pre-fixed mounting feet with 140mm × 140mm × 10mm square flange plates for bolt-down installation
• Modular design – extension bays available to extend from 1m up to 5m in length
• 2190mm internal height clearance and 2099mm overall depth
• Delivered flat-pack for self-assembly on site

Specifications

• Dimensions: 2m width, 1–5m length (bespoke to order), 2190mm height clearance
• Overall depth: 2099mm
• Frame: Galvanised mild steel, 50mm square section to EN10219:2006
• Panels & roof: 1mm galvanised steel sheet
• Fixing: Bolt-down via pre-fixed flange plates (4 bolts per plate)
• Finish: Expert CPA Assured galvanised
• Assembly: Self-assembly on site required

Applications

• Commercial and hospitality waste bin storage (offices, pubs, clubs, restaurants)
• Industrial and construction site waste management
• Secure outdoor storage for refuse bins and recycling containers
• Multi-unit residential developments requiring centralised bin storage
• Retail and supermarket waste containment
