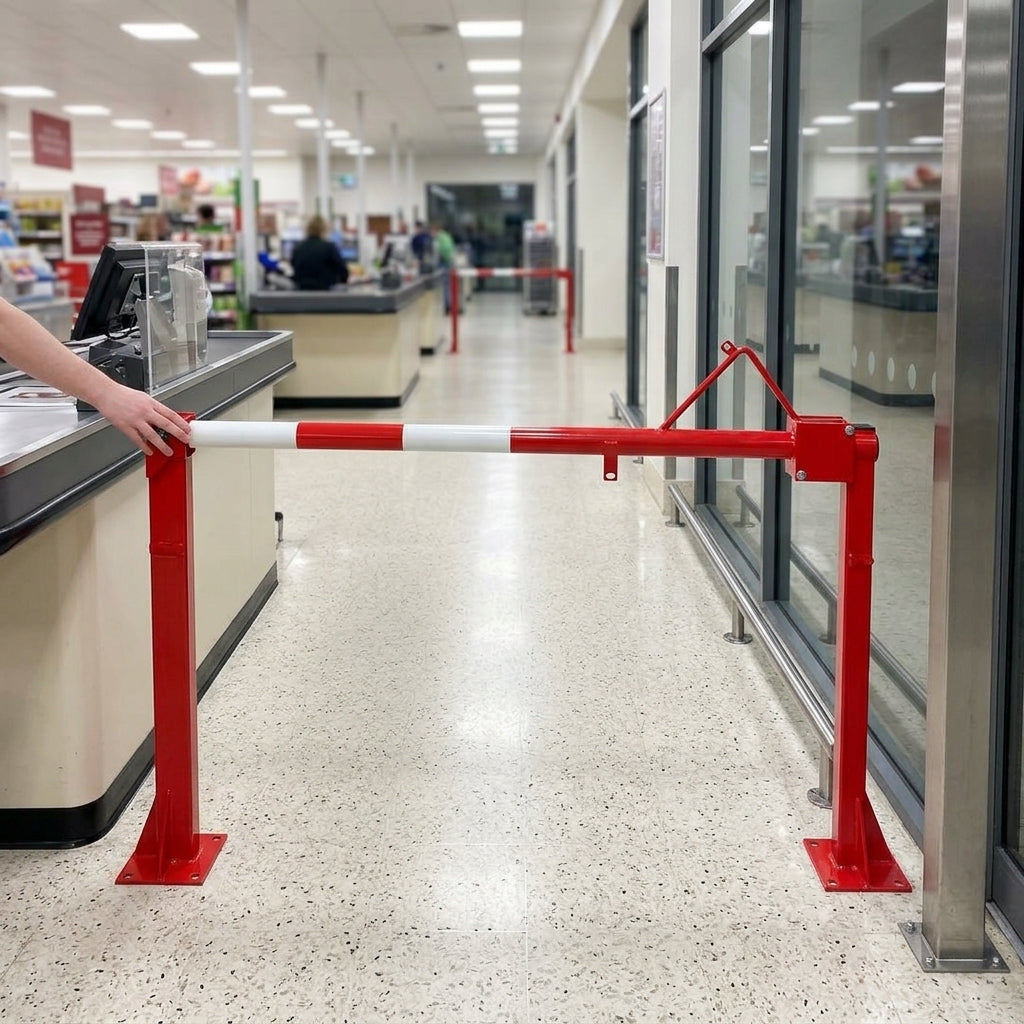

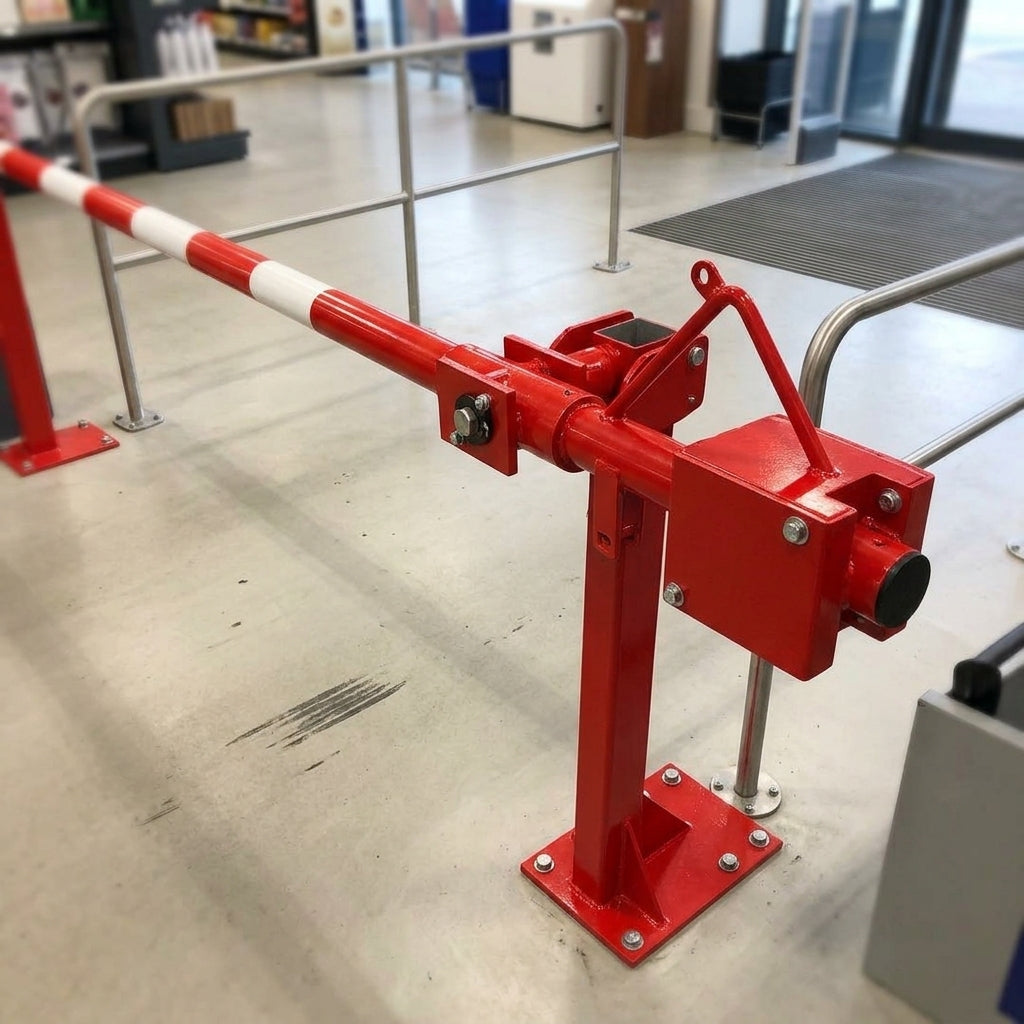

Manual arm barrier up to 8.0m – traffic access control
A durable manual raise arm barrier for controlling vehicle access across road widths up to 8 metres, easily operated by one person.
£1,787.86 incl. VAT
Usually dispatched within 1–2 business days. Delivery details · Need a firm date? Ask us
Overview
This cost-effective barrier provides low-maintenance traffic management for unauthorised or controlled areas. The robust aluminium boom is counterbalanced for smooth operation and features a lockable end rest mechanism to secure the barrier in raised or lowered positions. Supplied with padlock and keys.
- Aluminium boom with stainless steel pivot bar
- Heavy-duty, corrosion-resistant bearing blocks
- Counterbalanced fish tail weight for ease of operation
- Lockable end rest in raised and lowered positions
- Suitable for surface mounted or root fixed installation
- Vinyl hatched finish in red/white or yellow/black (other colours available)
Where it is used
- 01Permanent and temporary access control
- 02Car park and facility entry points
- 03Unauthorised area restriction
- 04Traffic management and security
Specifications
| Your selection | 3.0 Metres / Surface Mounted |
|---|---|
| Maximum span | 8.0 metres |
| Pivot assembly | aluminium box section |
| Shaft | zinc plated with stainless steel bearing blocks |
| Available widths | 3.0m, 3.5m, 4.0m, 4.5m, 5.0m, 5.5m, 6.0m, 6.5m, 7.0m, 7.5m, 8.0m |
| Installation options | surface mounted or root fixed |
| SKU | RCD30745 |
Other versions in this range
| Tube | Finish | Fixing | Price |
|---|---|---|---|
| — | — | — | From £4,877.28 inc VAT: Automatic Rising Arm Barrier | Solar & Battery Powered |
| — | — | — | You are here |
| — | Aluminium | — | From £2,874.48 inc VAT: Manual Raise Arm Barrier Heavy Duty 6–9m Aluminium |
| — | Galvanised steel | — | From £2,391.67 inc VAT: Manual Rise Arm Barrier – galvanised steel, up to 7.0m |
| — | Aluminium | — | From £1,618.80 inc VAT: Manual Arm Barrier Gas Strut 2–8m Aluminium |
